Hex-Box Pi series Datasheet
691.13 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CBHEX1-PI4-WH
146 × 130 × 45 mm
Material: ABS
Category: All Products, IoT Sensor & Communications
Hex-Box Raspberry Pi 4 Ready Enclosure, White
£9.96
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

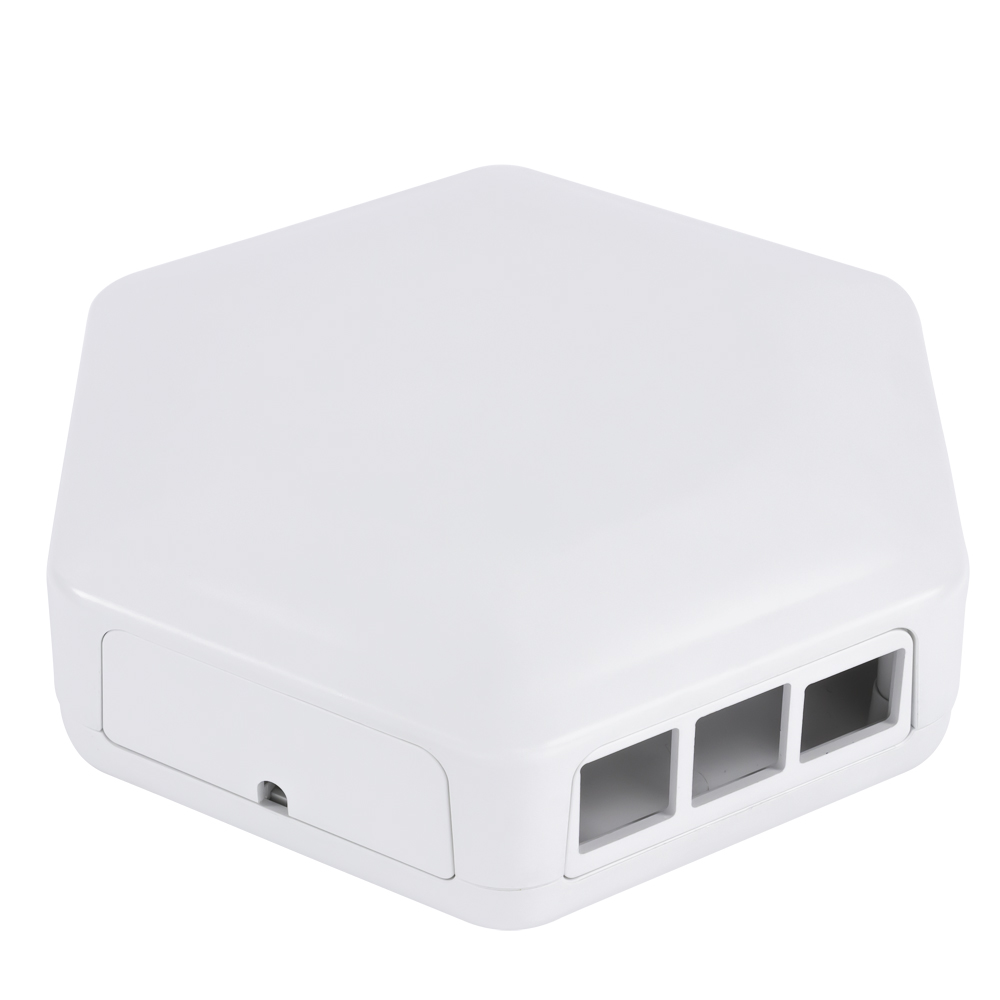

CBHEX1-PI4-WH – Hex-Box Raspberry Pi 4 Ready Enclosure, White

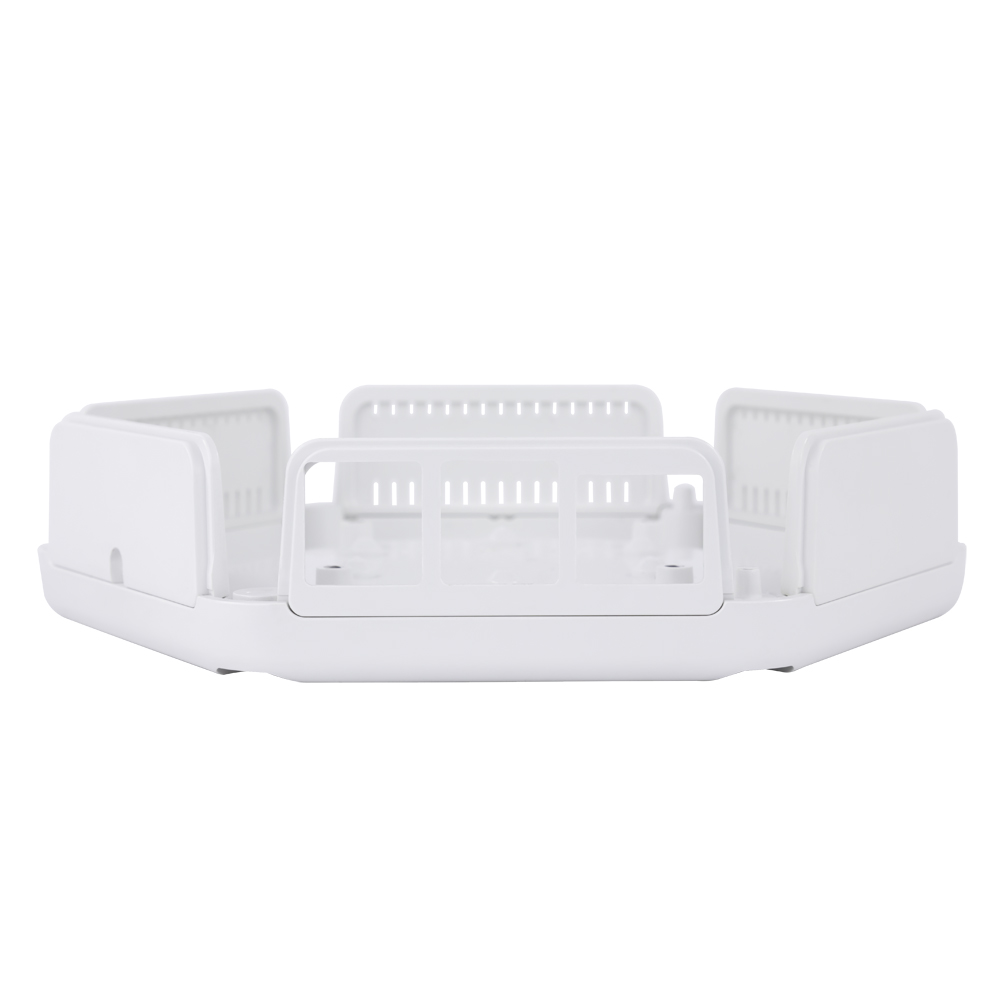

Hex-Box Pi Ready Enclosure, White, 146x130x45mm. This UK manufactured enclosure is made from 100% recyclable material and features seven self-retaining panels, two of which have been customised to accommodate Raspberry Pi boards. Need to surface mount your Pi 4 Make sure you check out the purpose-designed Wall Mount bracket, concealed to maintain a modern aesthetic.
This UK manufactured Hex-Box Pi 4 Ready Enclosure has been designed with customisation and user flexibility at heart. The 100% recyclable housing features seven self-retaining panels, two of which have been customised to accommodate Raspberry Pi boards. The power cable panel and the remaining panels can be placed in your desired position. The design features and modern aesthetic create the perfect enclosure for Pi projects (when paired with the Wall Mount bracket) or desktops (when paired with the rubber feet), each sold separately. Raspberry Pi board not included.
Technical
| Dimensions | 146 × 130 × 45 mm |
|---|---|
| Colour | White |
| Height | 45 |
| Width | 130 |
| Length | 146 |
| IP Rating | IP30 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Hexagon |
| Mounting | Free Standing, Wall Mount |
| Feature | Vented |
| Series | HEX-BOX |
Downloads
CBHEX1-PI4-XX
326.77 KB
