CDM8514BK

94 × 82 × 24 mm

Material: Aluminium

Category: All Products, Diecast & Metal

85 Series Enclosure, Extruded Aluminium Enclosure, IIoT Enclosure
£27.17

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

CDM8514BK – 85 Series Enclosure, Extruded Aluminium Enclosure, IIoT Enclosure

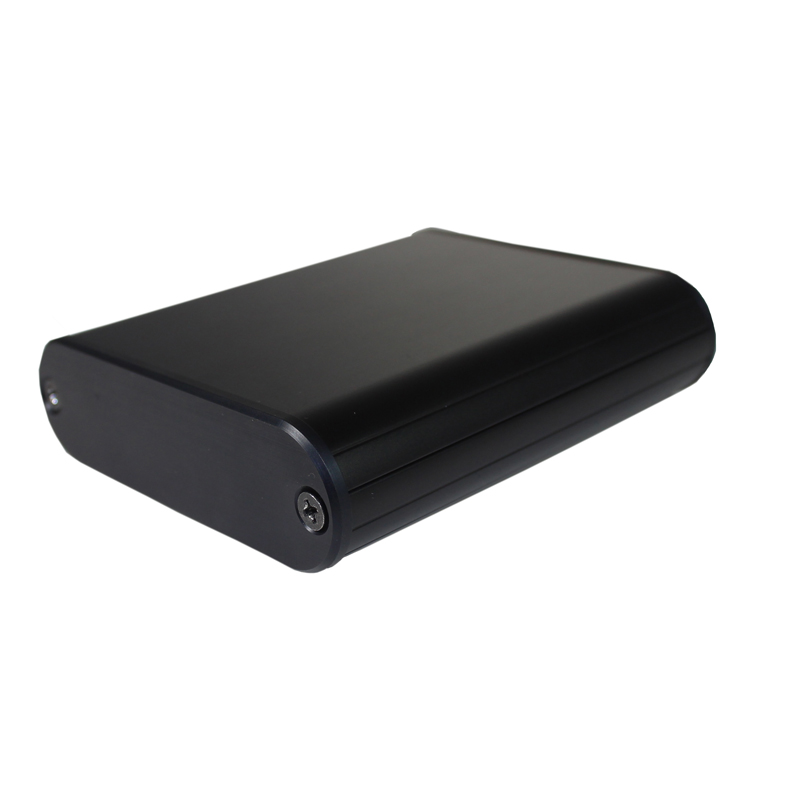

85 Series Round Aluminium Enclosure, Size 14, Black 94x82x24

Round aluminium mobile cases.
Extruded aluminium case
Extrusion is split through the center for two part extrusion
Two part extrusion gives a flush finish
Screw on end panels (Coloured end panels available on request)
Rubber feet supplied
PCB can slide into the enclosure (excludes sizes 1 & 3)
85 series has been designed to meet the requirements of IP40

Technical

Dimensions 94 × 82 × 24 mm
Colour

Black

Height

24

Width

82

Length

94

IP Rating

IP40

Manufacturer

CamdenBoss

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square, Rounded Design

Mounting

Free Standing

Feature

N/A

Series

85

Downloads

85 Series Rounded Extruded Enclosure_D

266.17 KB

CDM8514BK

213.87 KB
