85 Series Rounded Extruded Enclosure_D
266.17 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CDM8520BK
112 × 110 × 30 mm
Material: Aluminium
Category: All Products, Diecast & Metal
85 Series Enclosure, Extruded Aluminium Enclosure, Electronic Enclosure
£35.87
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

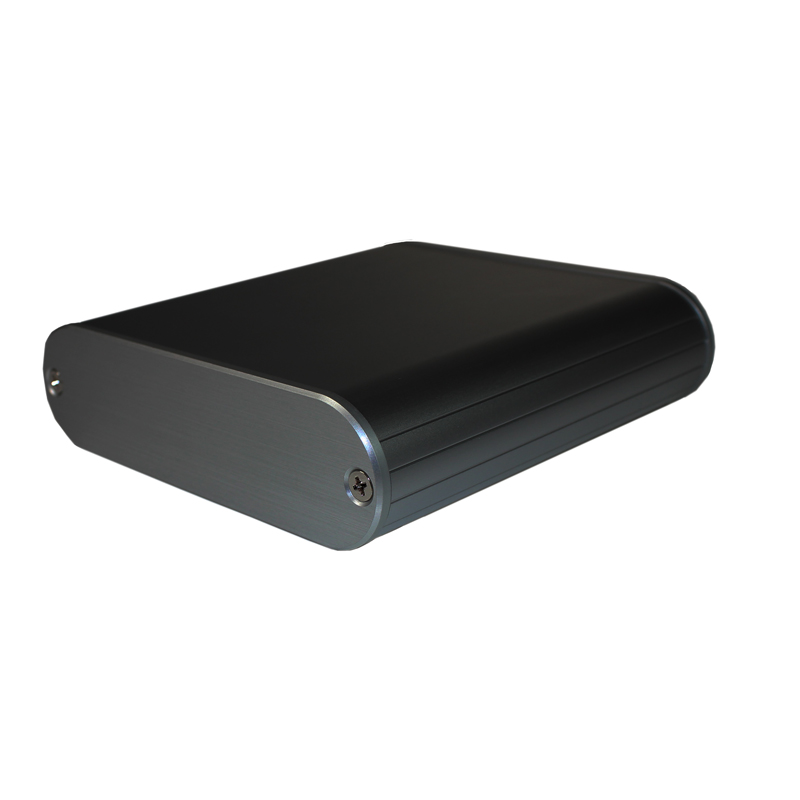

CDM8520BK – 85 Series Enclosure, Extruded Aluminium Enclosure, Electronic Enclosure
85 Series Round Aluminium Enclosure, Size 20, Black 112x110x30
Round aluminium mobile cases.
Extruded aluminium case
Extrusion is split through the center for two part extrusion
Two part extrusion gives a flush finish
Screw on end panels (Coloured end panels available on request)
Rubber feet supplied
PCB can slide into the enclosure (excludes sizes 1 & 3)
85 series has been designed to meet the requirements of IP40
Technical
| Dimensions | 112 × 110 × 30 mm |
|---|---|
| Colour | Black |
| Height | 30 |
| Width | 110 |
| Length | 112 |
| IP Rating | IP40 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square, Rounded Design |
| Mounting | Free Standing |
| Feature | N/A |
| Series | 85 |
Downloads
CDM8520BK
210.07 KB
