CDM8530SL

200 × 130 × 35 mm

Material: Aluminium

Category: All Products, Diecast & Metal

85 Series Enclosure, Extruded Aluminium Enclosure, Multipurpose Metal Enclosure
£49.18

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

CDM8530SL – 85 Series Enclosure, Extruded Aluminium Enclosure, Multipurpose Metal Enclosure

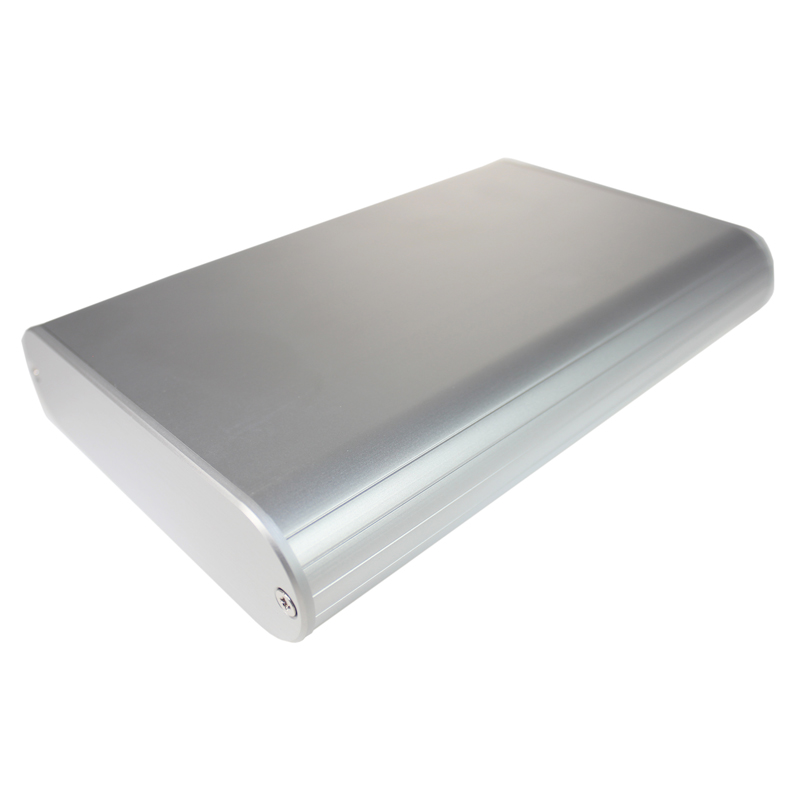

85 Series Round Aluminium Enclosure, Size 30, Silver 200x130x35

Round aluminium mobile cases.
Extruded aluminium case
Extrusion is split through the center for two part extrusion
Two part extrusion gives a flush finish
Screw on end panels (Coloured end panels available on request)
Rubber feet supplied
PCB can slide into the enclosure (excludes sizes 1 & 3)
85 series has been designed to meet the requirements of IP40

Technical

Dimensions 200 × 130 × 35 mm
Colour

Silver

Height

35

Width

130

Length

200

IP Rating

IP40

Manufacturer

CamdenBoss

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square, Rounded Design

Mounting

Free Standing

Feature

N/A

Series

85

Downloads

85 Series Rounded Extruded Enclosure_D

266.17 KB

CDM8530SL

209.65 KB
