86 Series Heatsink Aluminium Enclosure_D
262.93 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CDM8612SL
180 × 228 × 70 mm
Material: Aluminium
Category: All Products, Diecast & Metal
86 Series Enclosure, Heat Sink Aluminium Enclosure, Extruded Electronics Case
£128.48
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

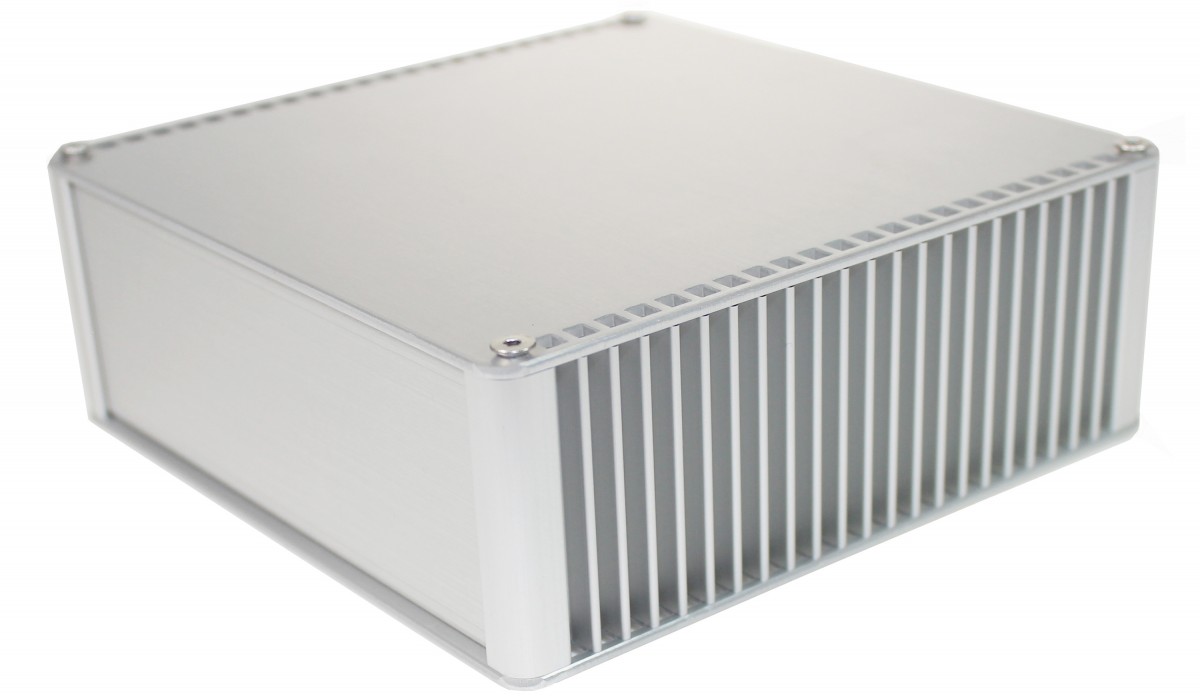

CDM8612SL – 86 Series Enclosure, Heat Sink Aluminium Enclosure, Extruded Electronics Case
86 Series Aluminium Audio Case, Size 12, Silver, 180x228x70mm
Stylish aluminium Heat-sink cases
Heat-sink is incorporated into the side plate
Audio style aluminium enclosures
Available in 12 sizes in silver
Easily customised and light weight
86 series has been designed to meet the requirements of IP40
Technical
| Dimensions | 180 × 228 × 70 mm |
|---|---|
| Colour | Silver |
| Height | 70 |
| Width | 228 |
| Length | 180 |
| IP Rating | IP40 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Vented |
| Series | 86 |
Downloads
CDM8612SL
199.18 KB
