88 Series Waterproof Heatsink Aluminium Enclosure_D
770.61 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CDM8811SL
125 × 86 × 86 mm
Material: Aluminium
Category: All Products, Diecast & Metal
88 Series Enclosure, Robust Industrial Aluminium Enclosure, IP67 Diecast Enclosure
£58.80
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

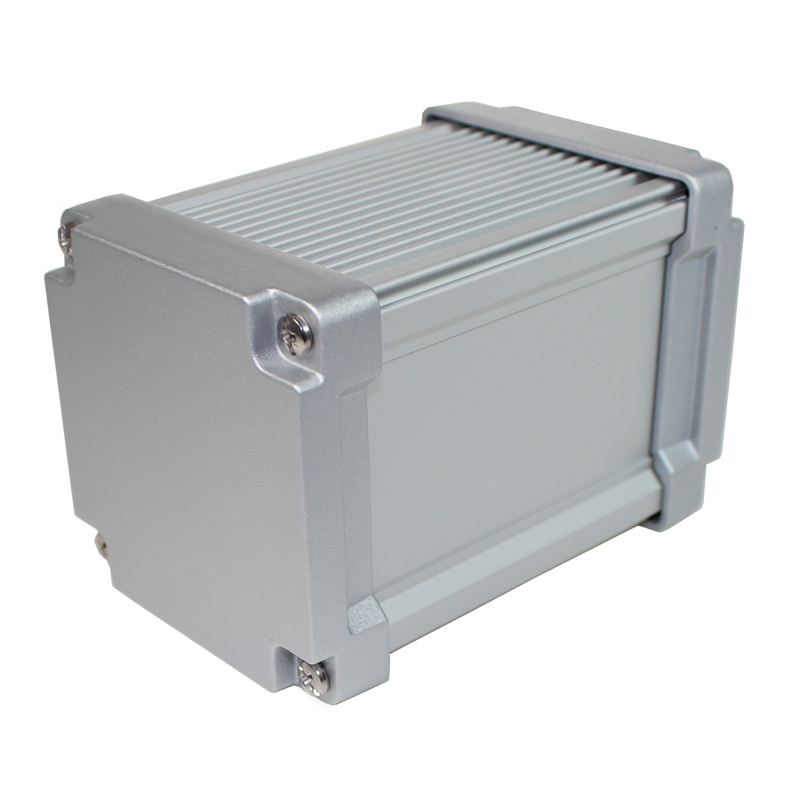

CDM8811SL – 88 Series Enclosure, Robust Industrial Aluminium Enclosure, IP67 Diecast Enclosure
88 Series IP67 Heatsink Case, Silver, Size 11, 125×86.3×86.3mm
EMC shielded aluminium heatsink enclosures with optional protective silicone boot
Heavy duty enclosure, heatsink extrusion body and die-cast panels
EMI-shielded (Non-shielded available upon request)
PCB or chassis are horizontally mountable by sliding into body frame
Designed for a tough environment
Heavy duty, highly waterproof and heat resistant.
Suitable for measuring instruments, industrial camera housing
88 series has been designed to meet the requirements of IP67
Technical
| Dimensions | 125 × 86 × 86 mm |
|---|---|
| Colour | Silver |
| Height | 86 |
| Width | 86 |
| Length | 125 |
| IP Rating | IP67 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | RF Shielded |
| Series | 88 |
Downloads
CDM8811SL
248.49 KB
