88 Series Waterproof Heatsink Aluminium Enclosure_D
770.61 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CDM88B4BK
36 × 114 × 65 mm
Material: Rubber
Category: All Products, Diecast & Metal
88 Series Silicone Boot
£26.87
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

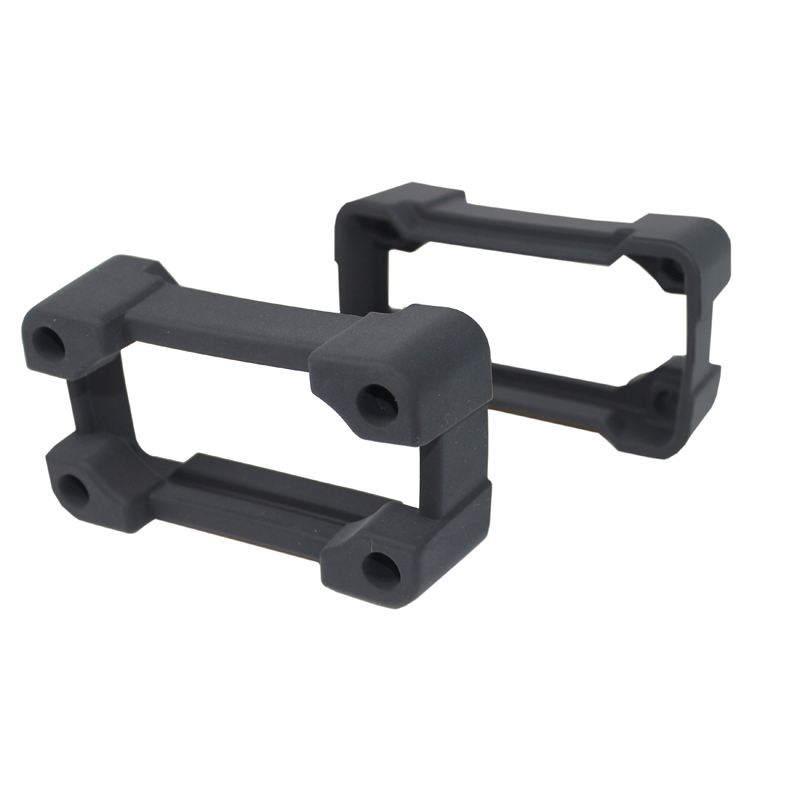

CDM88B4BK – 88 Series Silicone Boot
88 Series Silicone Boot for sizes 16 and 18
IP67, EMC shielded aluminium heatsink enclosures with optional protective silicone boot
Heavy duty enclosure, heatsink extrusion body and die-cast panels
EMI-shielded (Non-shielded available upon request)
PCB or chassis are horizontally mountable by sliding into body frame
Designed for a tough environment
Heavy duty, highly waterproof and heat resistant.
Suitable for measuring instruments, industrial camera housing
Technical
| Dimensions | 36 × 114 × 65 mm |
|---|---|
| Colour | Black |
| Height | 65 |
| Width | 114 |
| Length | 36 |
| IP Rating | N/A |
| Manufacturer | CamdenBoss |
| Material | Rubber |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | RF Shielded |
| Series | 88 |
Downloads
CDM88B4BK
196.07 KB
