88 Series Waterproof Heatsink Aluminium Enclosure_D
770.61 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CDM88MP18
221 × 87 × 2 mm
Material: Aluminium
Category: All Products, Diecast & Metal
88 Series Mounting Plate
£8.34
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

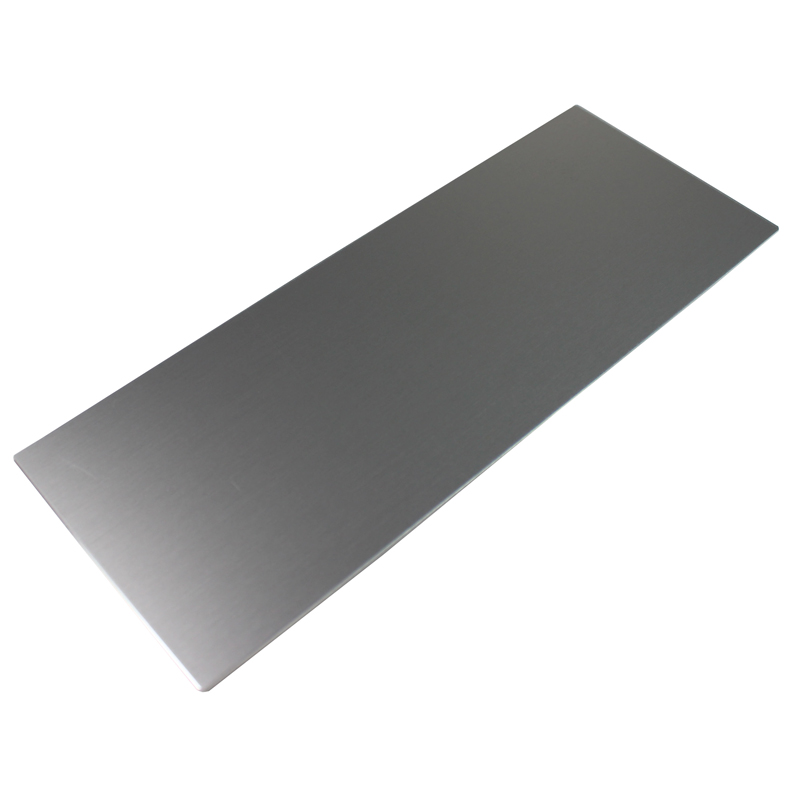

CDM88MP18 – 88 Series Mounting Plate
88 Series Mounting Plate for Enclosure Size 18
IP67, EMC shielded aluminium heatsink enclosures with optional protective silicone boot
Heavy duty enclosure, heatsink extrusion body and die-cast panels
EMI-shielded (Non-shielded available upon request)
PCB or chassis are horizontally mountable by sliding into body frame
Designed for a tough environment
Heavy duty, highly waterproof and heat resistant.
Suitable for measuring instruments, industrial camera housing
Technical
| Dimensions | 221 × 87 × 2 mm |
|---|---|
| Colour | Silver |
| Height | 2 |
| Width | 87 |
| Length | 221 |
| IP Rating | N/A |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | RF Shielded |
| Series | 88 |
Downloads
CDM88MP18
155.66 KB
