CDM9511BK
231 × 280 × 70 mm
Material: Aluminium
Category: All Products, Diecast & Metal
95 Series Enclosure, Aluminium Heat Sink Enclosure, Electronic Equipment Enclosure
£210.83
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
CDM9511BK – 95 Series Enclosure, Aluminium Heat Sink Enclosure, Electronic Equipment Enclosure

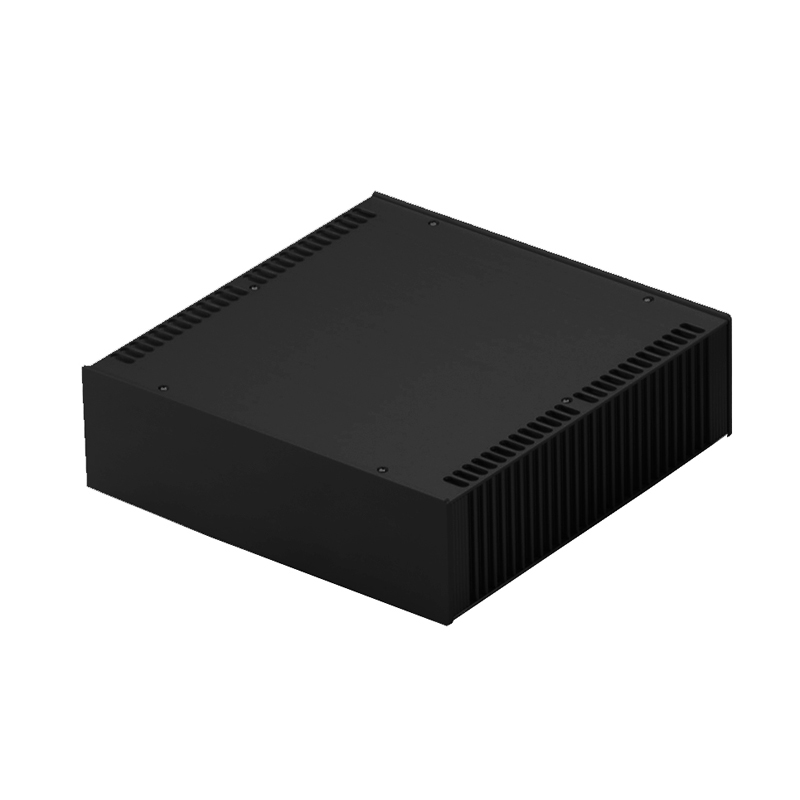

95 Series Heat-Sink Aluminium Enclosure, Black, 231x280x70mm
Sylish and elegantly designed with an anodized, brushed hairline finish
Excellent cooling performance provided by the heat-sink side plates
Tough and robust enclosure made from extruded aluminium
Simple and easy to assemble
Available in 14 sizes and two colours
95 series has been designed to meet the requirements of IP40
Technical
| Dimensions | 231 × 280 × 70 mm |
|---|---|
| Colour | Black |
| Height | 70 |
| Width | 280 |
| Length | 231 |
| IP Rating | IP40 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Easy Assembly |
| Series | 95 |
