95 series_series_D
325.79 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CDM9523SL
231 × 430 × 88 mm
Material: Aluminium
Category: All Products, Diecast & Metal
95 Series Enclosure, Aluminium Heat Sink Enclosure, Electronic Equipment Enclosure
£180.90
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

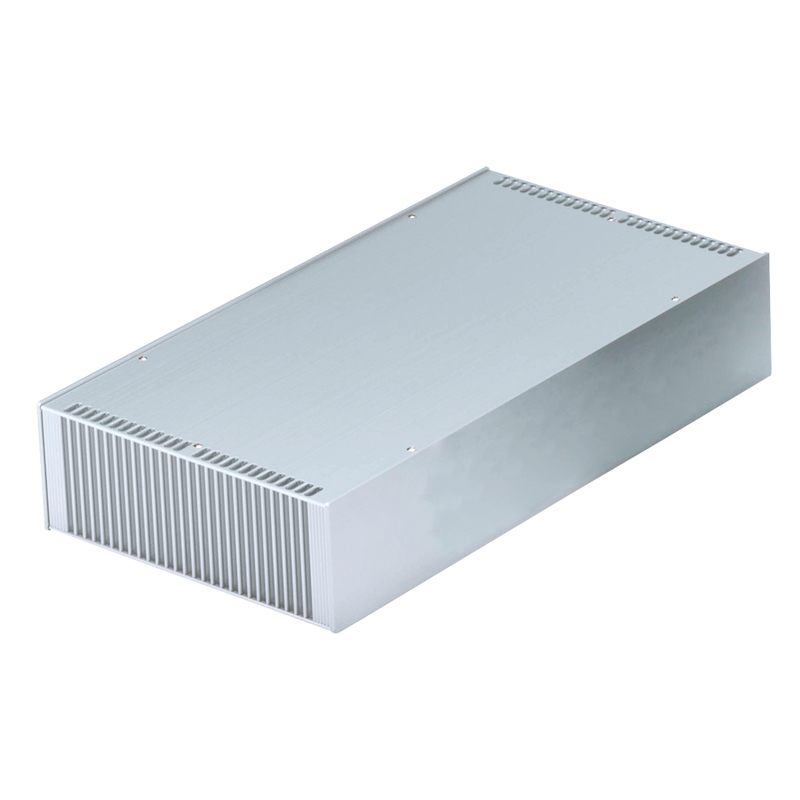

CDM9523SL – 95 Series Enclosure, Aluminium Heat Sink Enclosure, Electronic Equipment Enclosure
95 Series Heat-Sink Aluminium Enclosure, Silver, 231x430x88mm
Sylish and elegantly designed with an anodized, brushed hairline finish
Excellent cooling performance provided by the heat-sink side plates
Tough and robust enclosure made from extruded aluminium
Simple and easy to assemble
Available in 14 sizes and two colours
95 series has been designed to meet the requirements of IP40
Technical
| Dimensions | 231 × 430 × 88 mm |
|---|---|
| Colour | Silver |
| Height | 88 |
| Width | 430 |
| Length | 231 |
| IP Rating | IP40 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Easy Assembly |
| Series | 95 |
Downloads
CDM9523SL
295.12 KB
