CDT8402WH

125 × 180 × 35 mm

84 Series Enclosure, Clip Together ABS Electronics Enclosure
£8.92

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

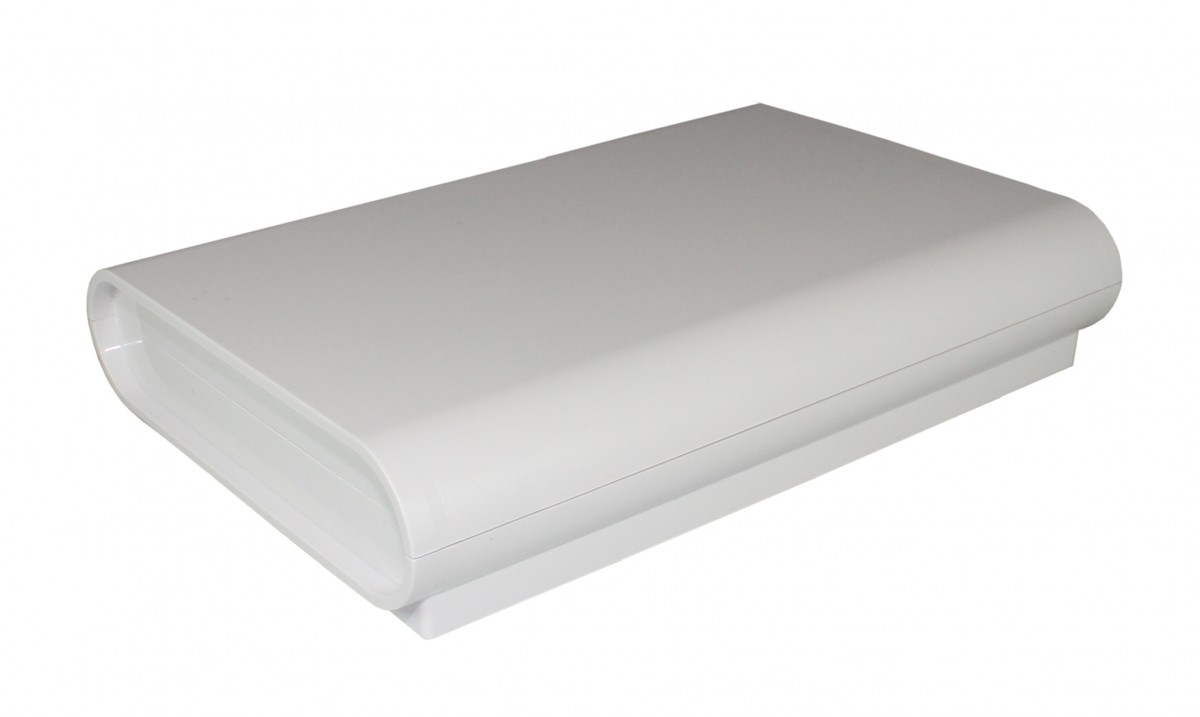

CDT8402WH – 84 Series Enclosure, Clip Together ABS Electronics Enclosure

84 Series Round Edge Case, White, 125x180x35mm

ABS Round shaped case, suitable for Wall Mounting
Clip together enclosures
Available in two sizes and two colours : white & dark grey
Internal pillars for PCB mounting
84 series has been designed to meet the requirements of IP40

Technical

Dimensions 125 × 180 × 35 mm
Colour

White

Height

35

Width

180

Length

125

IP Rating

IP40

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square, Rounded Design

Mounting

Wall Mount

Feature

Easy Assembly

Series

84

Downloads

84 Series Network ABS Enclosure_D (1)

162.52 KB

CDT8402WH

166.44 KB
