71 Series IP66 Flanged Enclosure_D
418.36 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CHD7101BK
140 × 89 × 38 mm
Material: Polycarbonate
Category: All Products, Heavy Duty
71 Series Enclosure, Heavy Duty Polycarbonate Enclosure With Mounting Flanges
£16.12
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

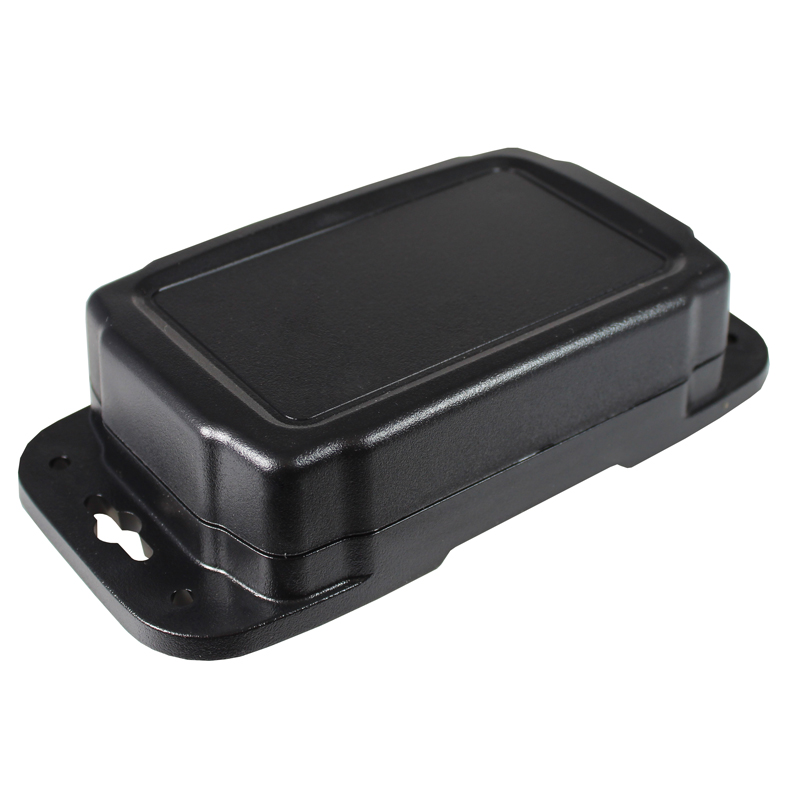

CHD7101BK – 71 Series Enclosure, Heavy Duty Polycarbonate Enclosure With Mounting Flanges
71 Series Flanged IP66 Enclosure, Black, 139.7 x 88.9 x 38.1mm
Recessed cover
PCB mounting bosses in the base and cover
Fitted silicone rubber gasket for dust and moisture resistance
Black UV stablised polycarbonate
71 series has been designed to meet the requirements of NEMA 4X/IP66 ratings
Technical
| Dimensions | 140 × 89 × 38 mm |
|---|---|
| Colour | Black |
| Height | 38 |
| Width | 89 |
| Length | 140 |
| IP Rating | IP66 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Recessed Lid |
| Series | 71 |
Downloads
CHD7101BK
292.54 KB
