72 Series Wall Mount IP66 Enclosure_D
418.36 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CHD7202GY
222 × 133 × 84 mm
Material: Polycarbonate
Category: All Products, Heavy Duty
72 Series Enclosure, Heavy Duty Polycarbonate Enclosure With Mounting Flanges
£29.74
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

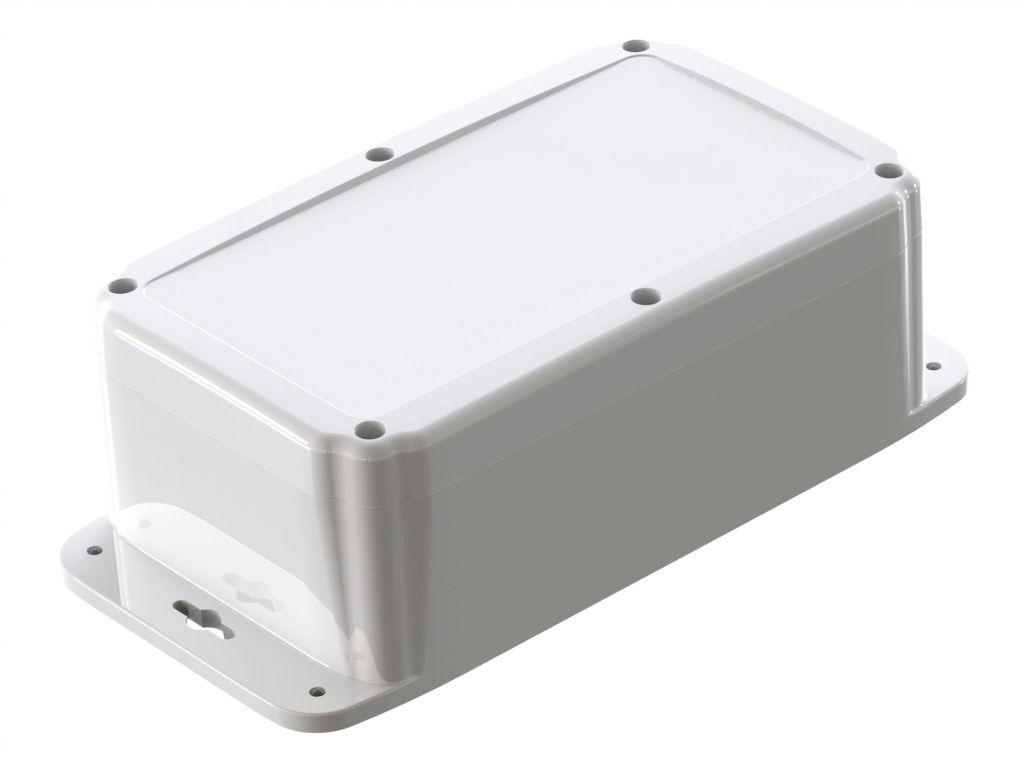

CHD7202GY – 72 Series Enclosure, Heavy Duty Polycarbonate Enclosure With Mounting Flanges
72 Series Wall Mount IP66 Enclosure, Grey, 222.3 x 133.4 x 83.8mm
Mounting flanges on the base
Recessed cover
Solid cover or transparent cover option
PCB mounting bosses in the base and cover
Fitted silicone rubber gasket for dust and moisture resistance
Captive, stainless steel screws thread into brass inserts
72 series has been designed to meet the requirements of NEMA 4X/IP66 ratings
Technical
| Dimensions | 222 × 133 × 84 mm |
|---|---|
| Colour | Grey |
| Height | 84 |
| Width | 133 |
| Length | 222 |
| IP Rating | IP66 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | Recessed Lid |
| Series | 72 |
Downloads
CHD7202GY
309.64 KB
