CHD7211GY

194 × 118 × 79 mm

Material: Polycarbonate

Category: All Products, Heavy Duty

72 Series Enclosure, Heavy Duty Polycarbonate Enclosure With Mounting Flanges
£23.84

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

CHD7211GY – 72 Series Enclosure, Heavy Duty Polycarbonate Enclosure With Mounting Flanges

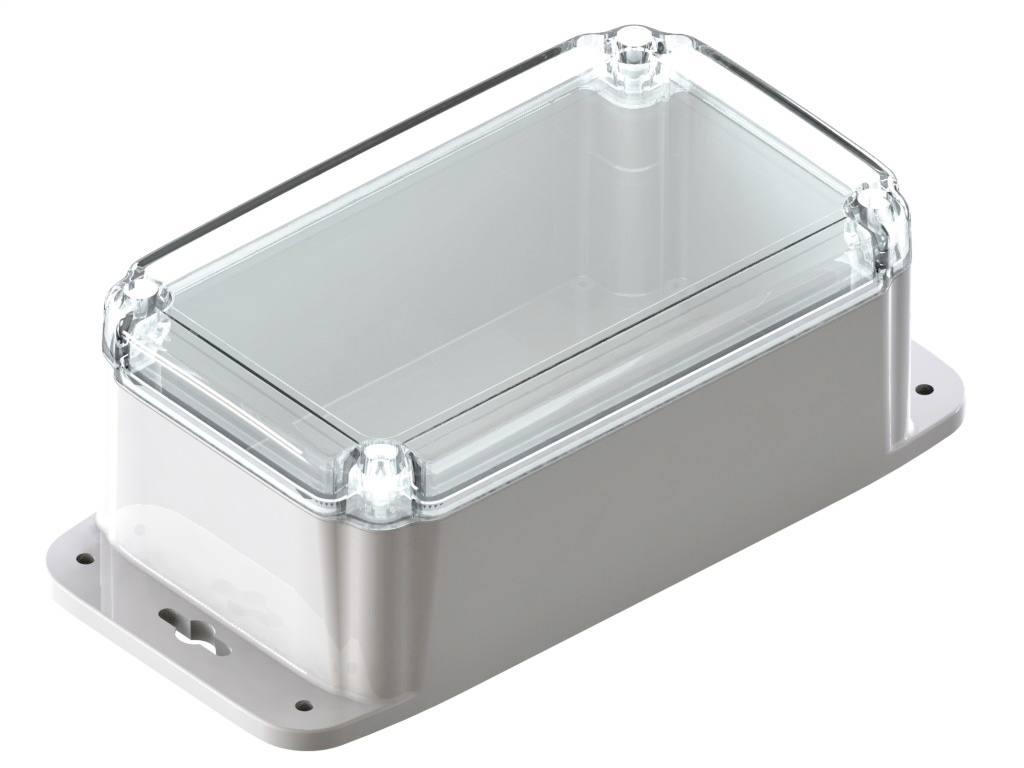

72 Series Wall Mount IP66 Enclosure, Grey, Clear Lid, 193.8 x 117.6 x 78.5mm

Mounting flanges on the base
Recessed cover
Solid cover or transparent cover option
PCB mounting bosses in the base and cover
Fitted silicone rubber gasket for dust and moisture resistance
Captive, stainless steel screws thread into brass inserts
72 series has been designed to meet the requirements of NEMA 4X/IP66 ratings

Technical

Dimensions 194 × 118 × 79 mm
Width

118

Length

194

IP Rating

IP66

Manufacturer

CamdenBoss

Material

Polycarbonate

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

Wall Mount

Feature

Clear Lid, Recessed Lid, Waterproof

Series

72

Downloads

72 Series Wall Mount IP66 Enclosure_D

418.36 KB

CHD7211GY

285.55 KB
