CHD91E4WG
100 × 100 × 40 mm
Material: ASA
Category: All Products, Heavy Duty
91 Series Low Profile UV Resistant Enclosure
£10.24
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

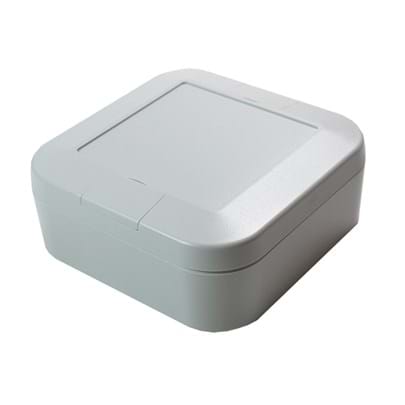

CHD91E4WG – 91 Series Low Profile UV Resistant Enclosure
91 Series IP67 low profile ASA electronics enclosure, size 4, white grey, 100x100x40mm. Ideal for outdoor networking applications
91 series has been designed to meet the requirements of IP67White enclosures made from ASA UL94-HB plastic for high ultraviolet resistance
Dark Grey enclosures made from ABS UL94-V0 plastic for high flammability rating
Wall Mount holes behind hinged caps for superior aesthetic finish
Mounting kit accessory for easy mounting to poles, pillars, posts and lamp posts
Technical
| Dimensions | 100 × 100 × 40 mm |
|---|---|
| Colour | Grey, White |
| Height | 40 |
| Width | 100 |
| Length | 100 |
| IP Rating | IP67 |
| Manufacturer | CamdenBoss |
| Material | ASA |
| Flammability | UL94-HB |
| Shape | Rectangular/Square, Rounded Design |
| Mounting | Free Standing, Pole Mount, Wall Mount |
| Feature | Waterproof |
| Series | 91 |
