CHD91E6WG

150 × 110 × 40 mm

Material: ASA

Category: All Products, Heavy Duty

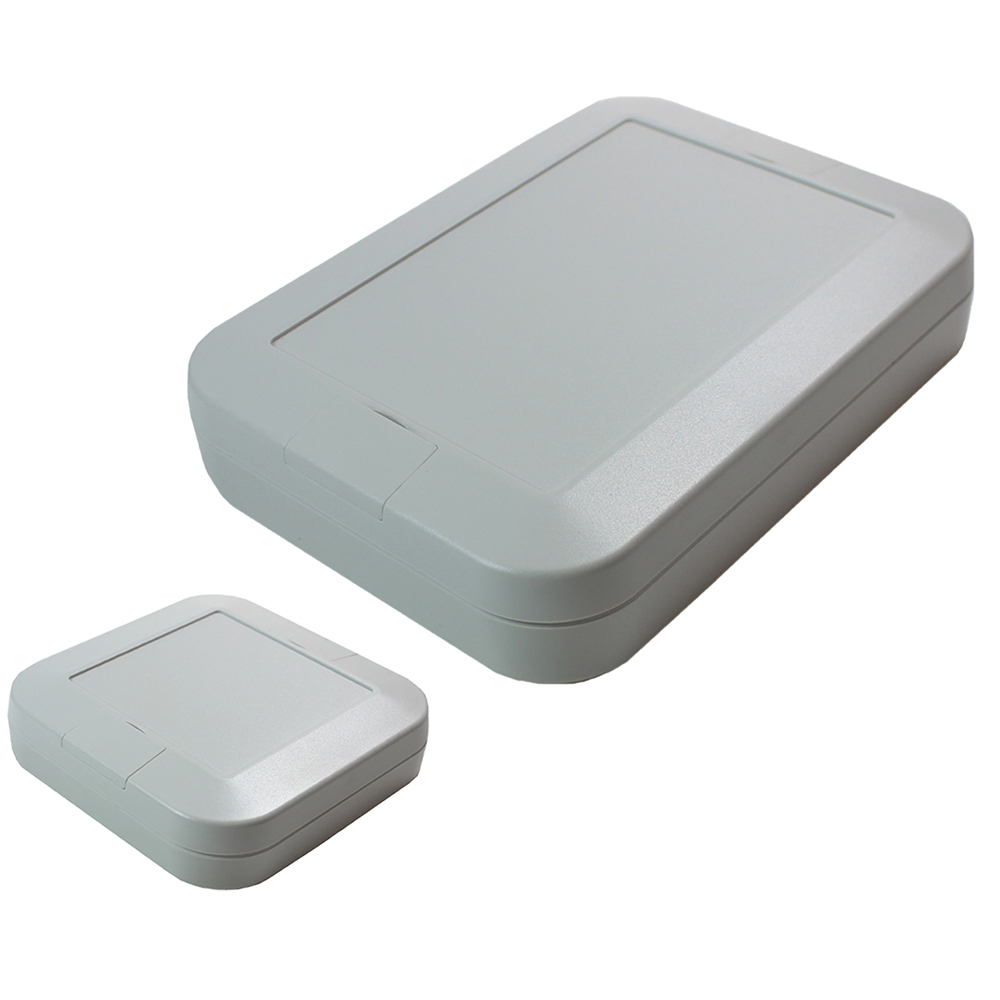

91 Series Low Profile UV Resistant Enclosure
£13.60

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

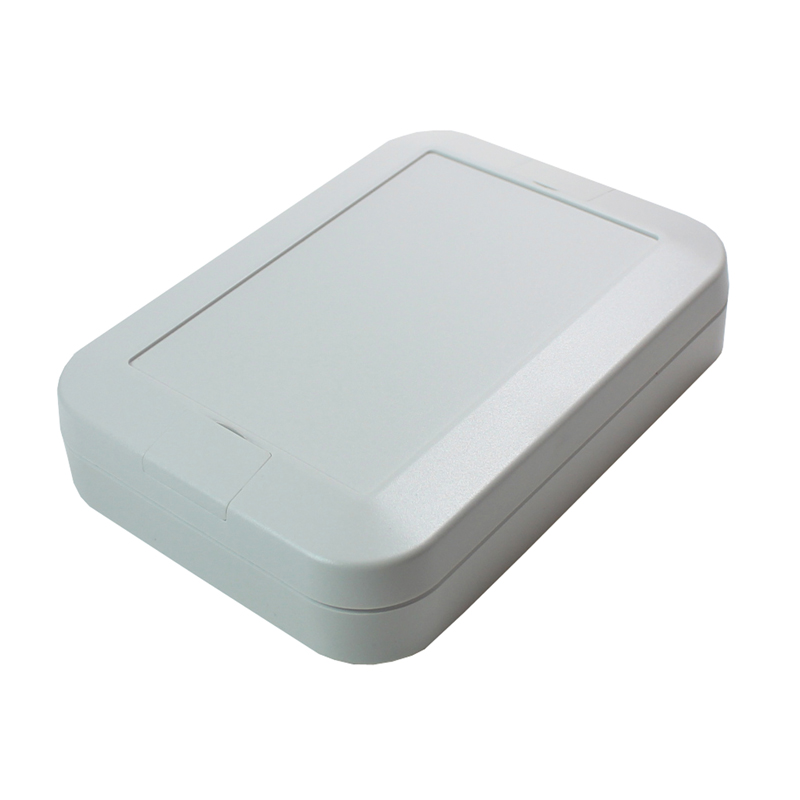

CHD91E6WG – 91 Series Low Profile UV Resistant Enclosure

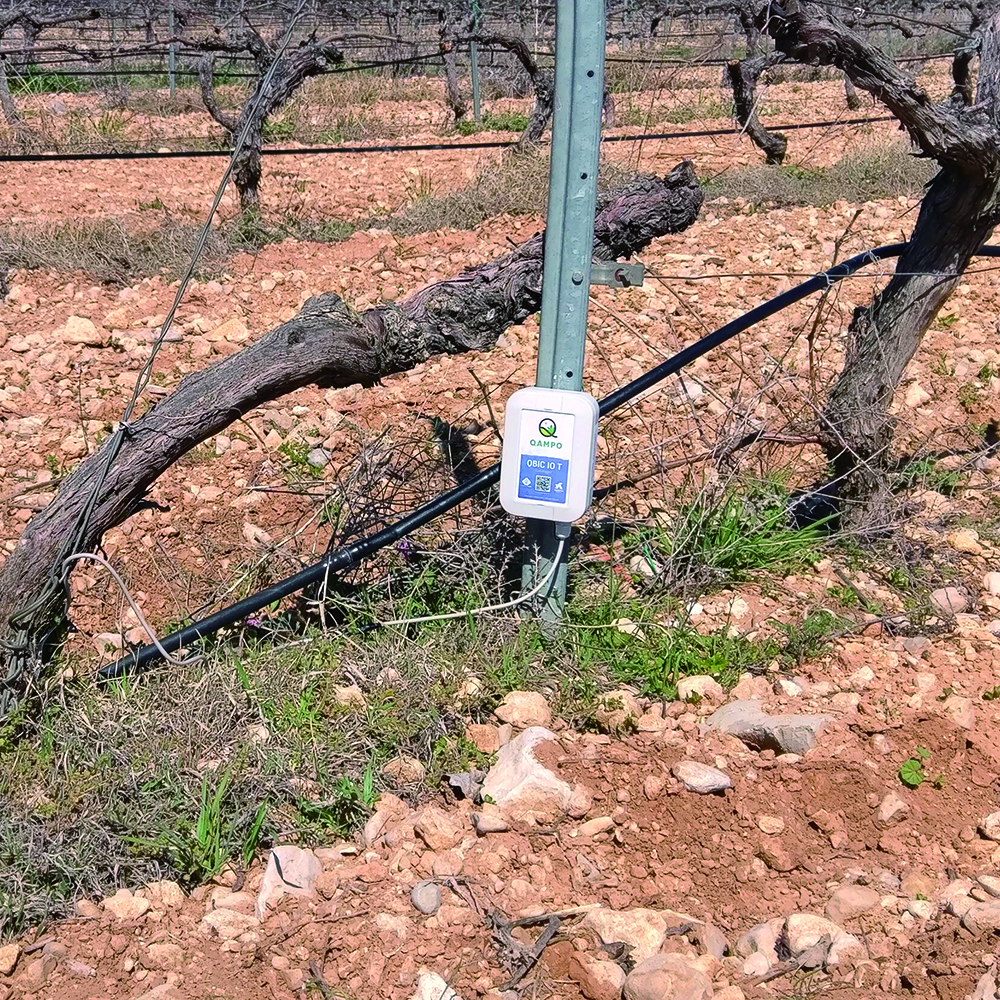

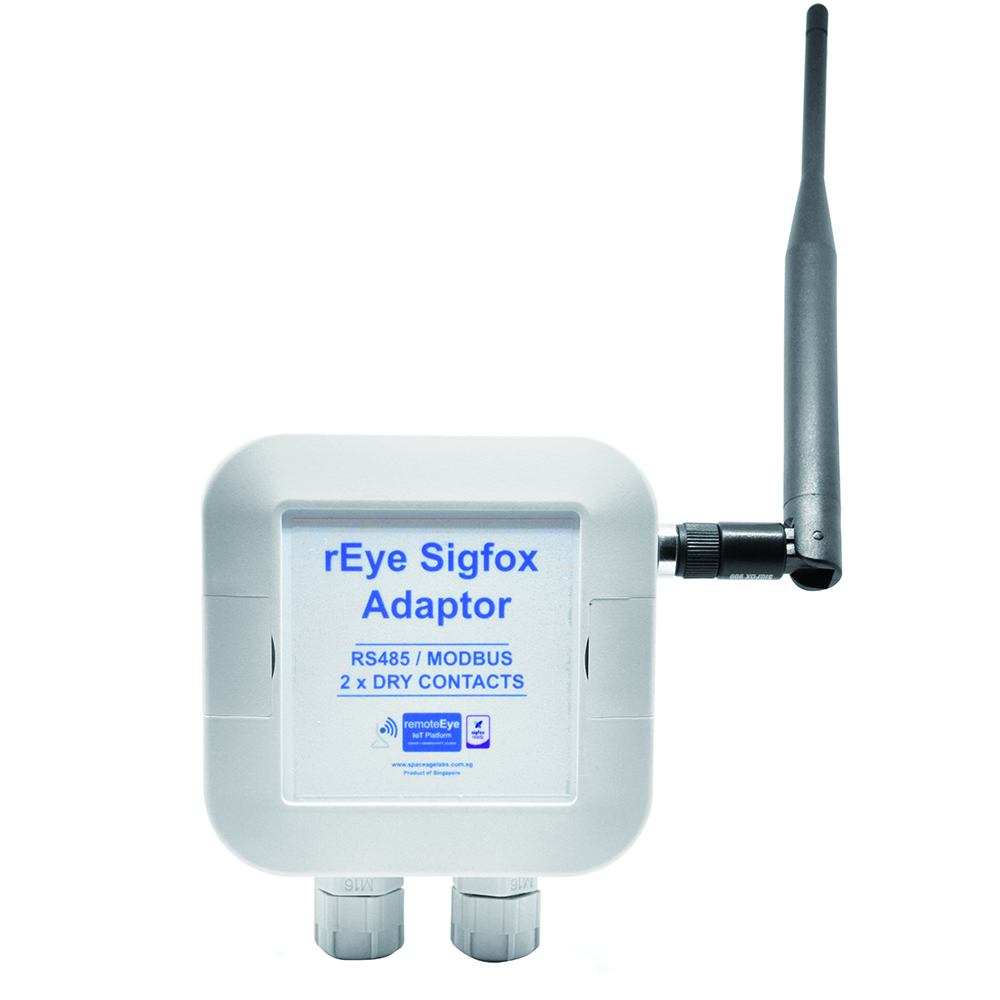

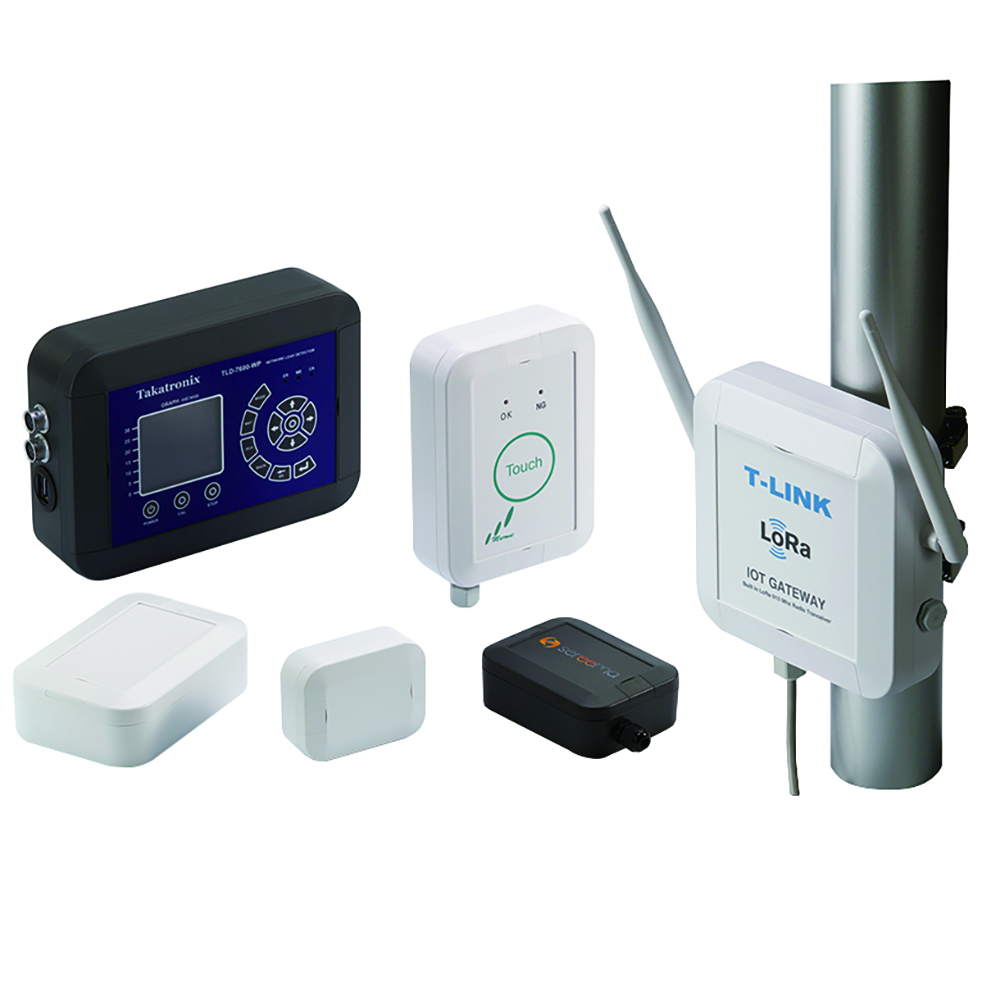

91 Series IP67 low profile ASA electronics enclosure, size 6, white grey, 150x110x40mm. Ideal for outdoor networking applications

91 series has been designed to meet the requirements of IP67White enclosures made from ASA UL94-HB plastic for high ultraviolet resistance
Dark Grey enclosures made from ABS UL94-V0 plastic for high flammability rating

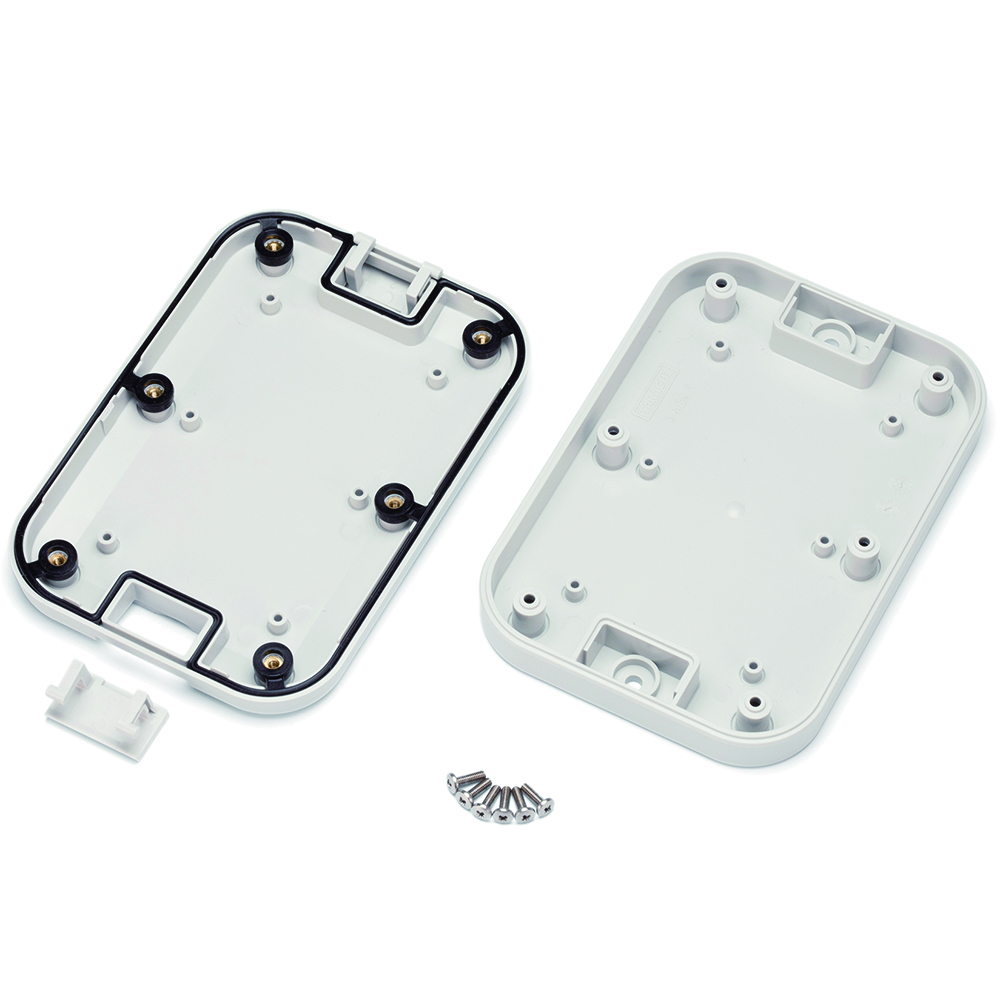

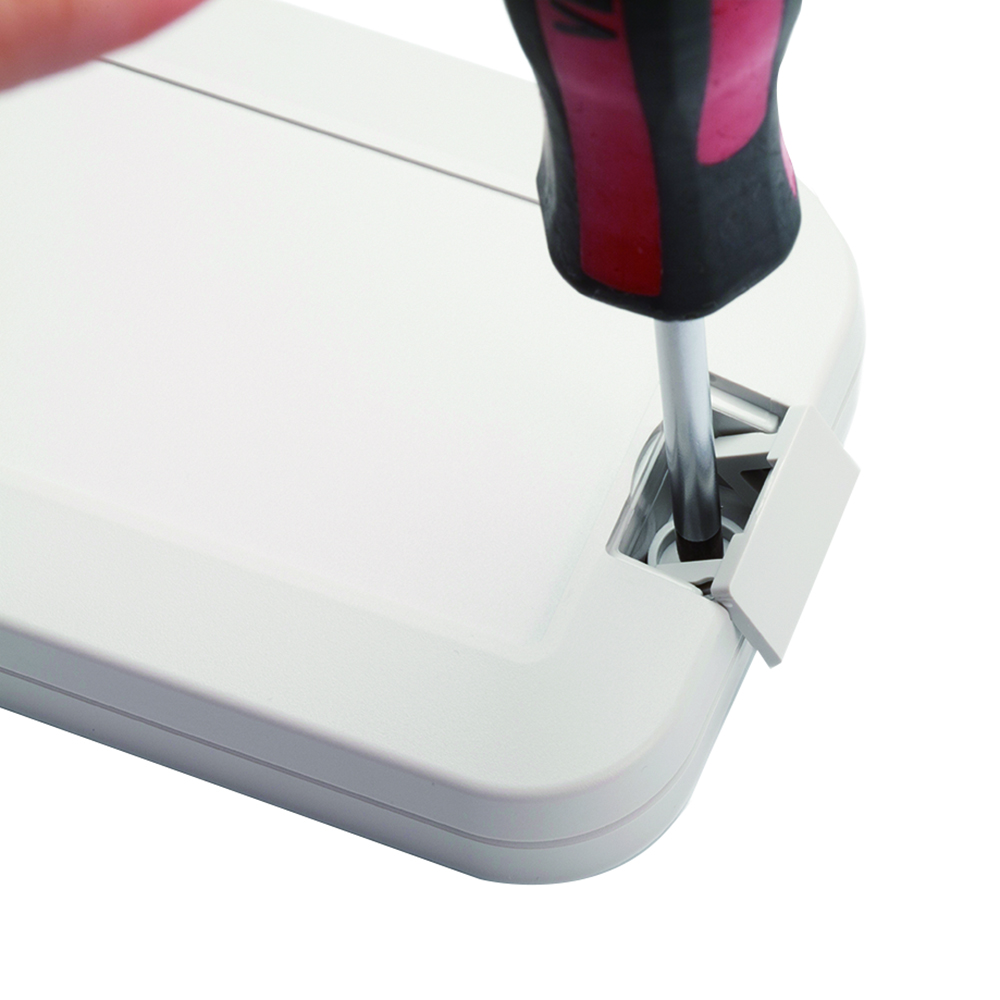

Wall Mount holes behind hinged caps for superior aesthetic finish

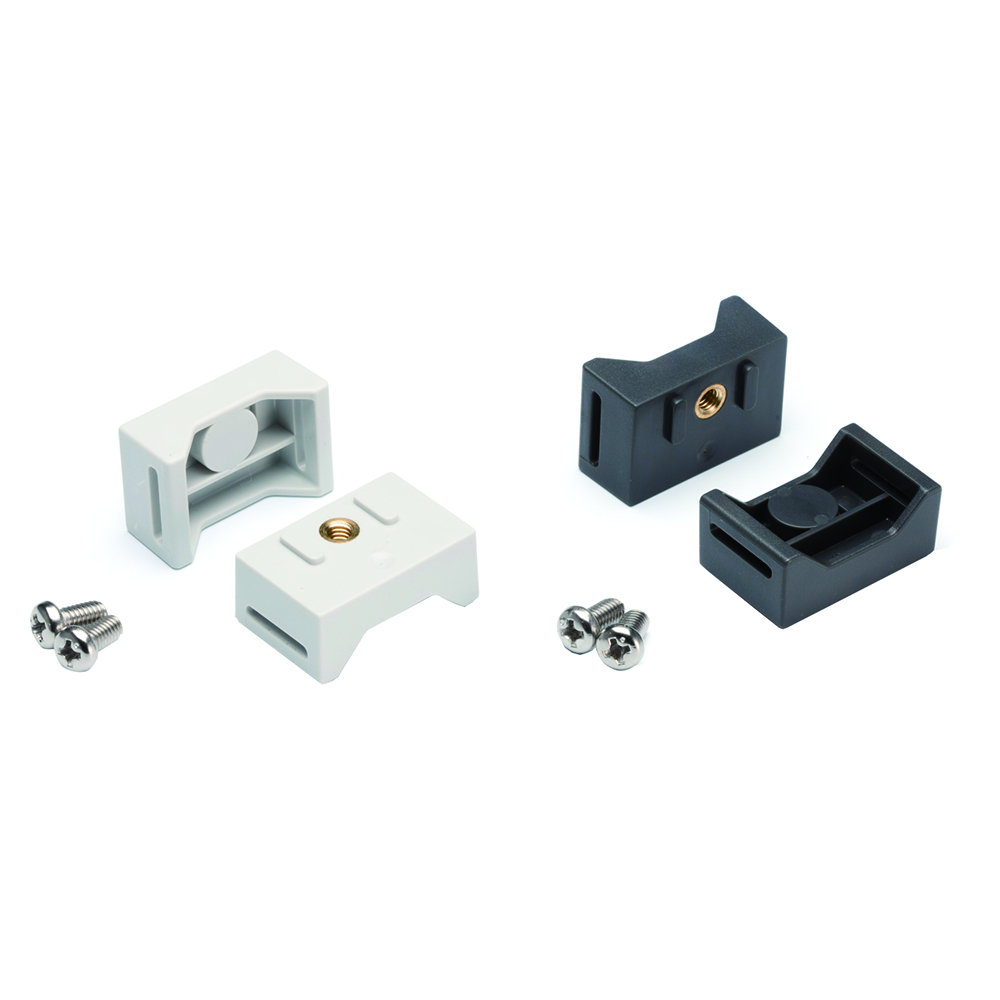

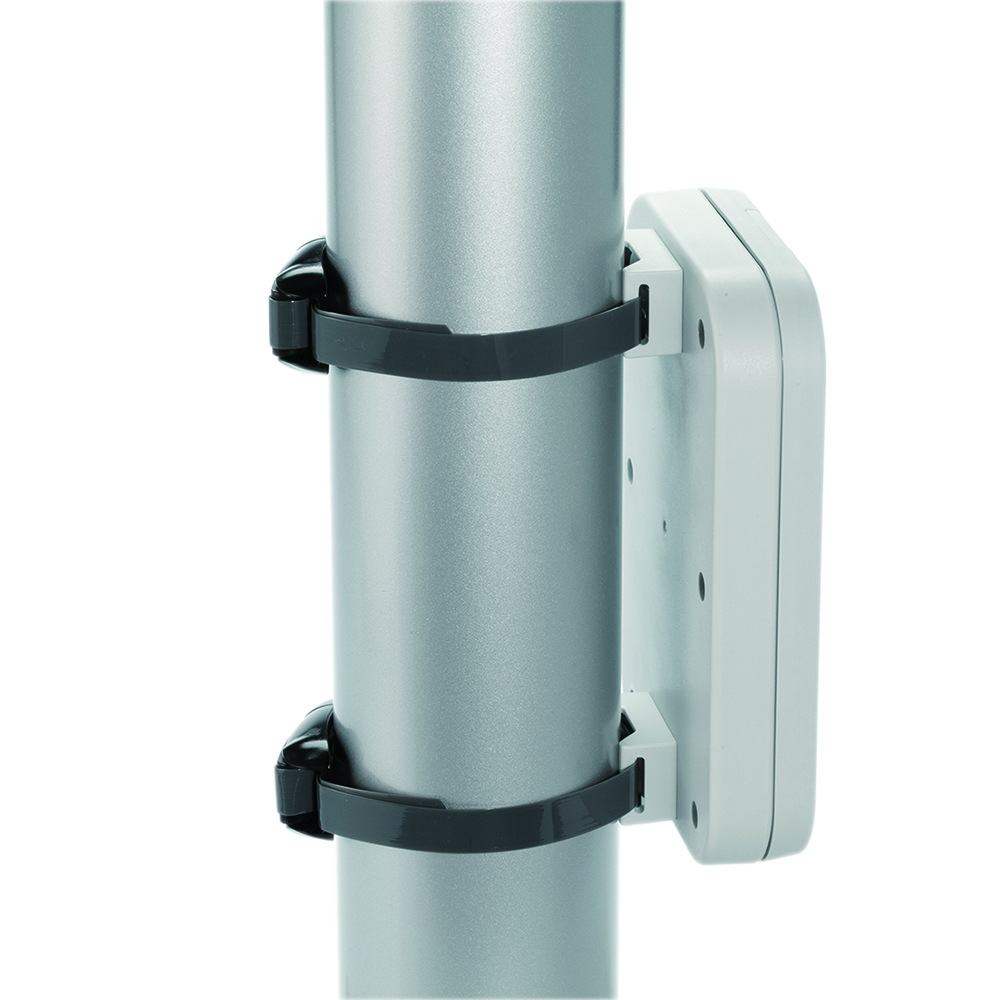

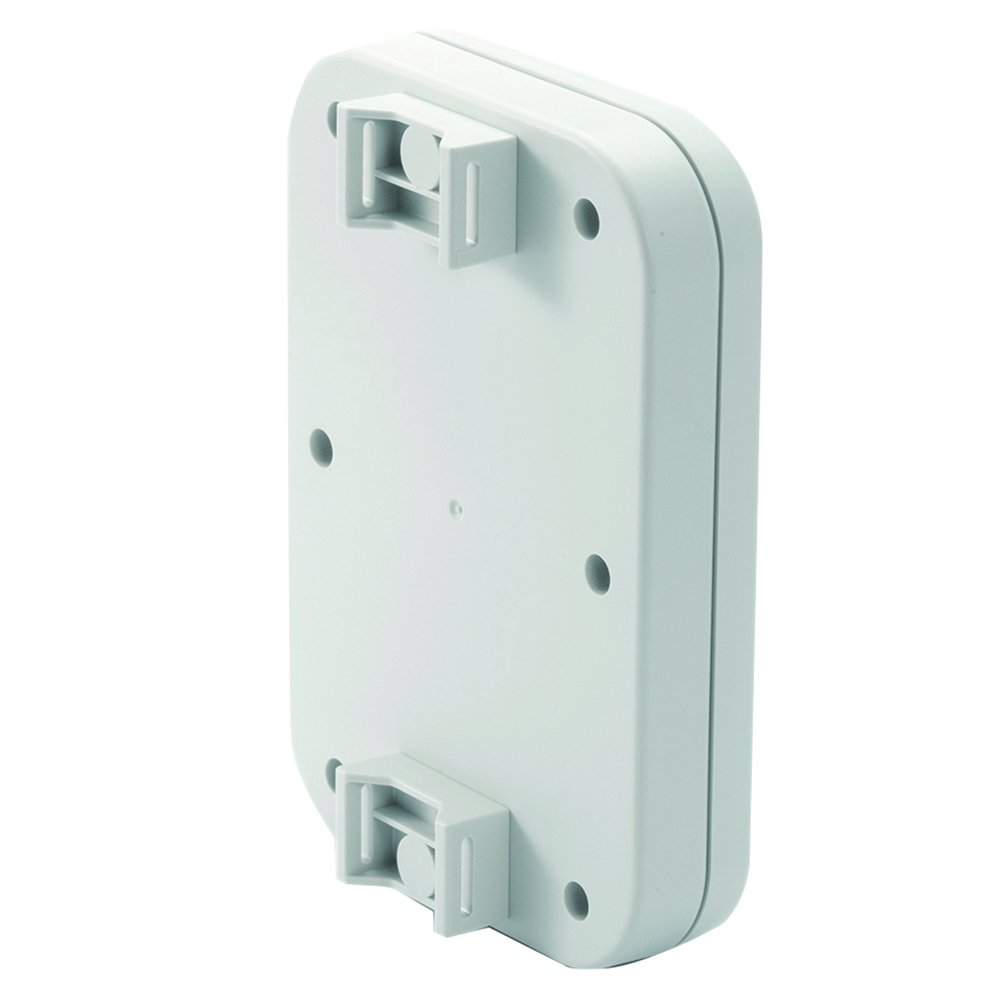

Mounting kit accessory for easy mounting to poles, pillars, posts and lamp posts

Technical

Dimensions 150 × 110 × 40 mm
Colour

Grey, White

Height

40

Width

110

Length

150

IP Rating

IP67

Manufacturer

CamdenBoss

Material

ASA

Flammability

UL94-HB

Shape

Rectangular/Square, Rounded Design

Mounting

Free Standing, Pole Mount, Wall Mount

Feature

Waterproof

Series

91

Downloads

91 Series_series_D

351.29 KB

CHD91E6WG

404.24 KB
