CHDX6-328
250 × 80 × 85 mm
Material: ABS
Category: All Products, Electrical
X6 Series Electrical Knockout Enclosure, IP67 ABS Industrial Electronics Enclosure
£8.77
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

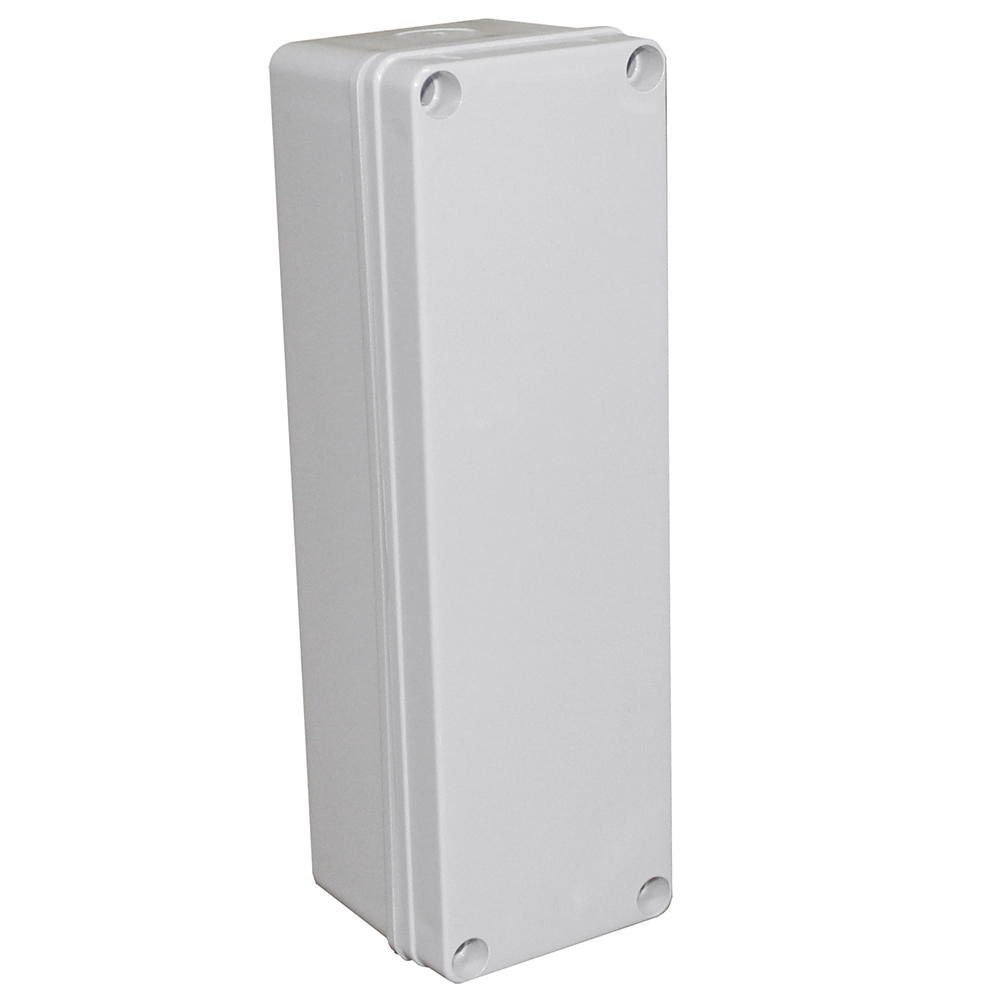

CHDX6-328 – X6 Series Electrical Knockout Enclosure, IP67 ABS Industrial Electronics Enclosure
IP67 ABS case with a solid lid featuring metric knockouts for cable glands. The perfect solution for IoT, IIoT and industry 4.0 enclosures 250x80x85
X6 series has been designed to meet the requirements of IP67IK07/08 impact tested
Screw type lid with knock out base
Moulded in high quality ABS
PCB pillars in the base for PCB mounting
Gasket supplied with the enclosure
Clear lid option available
Captive, polyamide screws included
The robust X6 enclosure would be an ideal small industrial display enclosure
Ideal for the growing Industry 4.0 and IIoT enclosure sectors
Technical
| Dimensions | 250 × 80 × 85 mm |
|---|---|
| Feature | N/A |
| Width | 80 |
| Length | 250 |
| IP Rating | IP66-67 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing, Wall Mount |
| Feature | Knockouts |
| Series | X6 |
