CHDX6-329C
175 × 125 × 70 mm
Material: ABS
Category: All Products, Electrical
X6 Series Electrical Knockout Enclosure, IP67 ABS Industrial Electronics Enclosure
£9.57
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

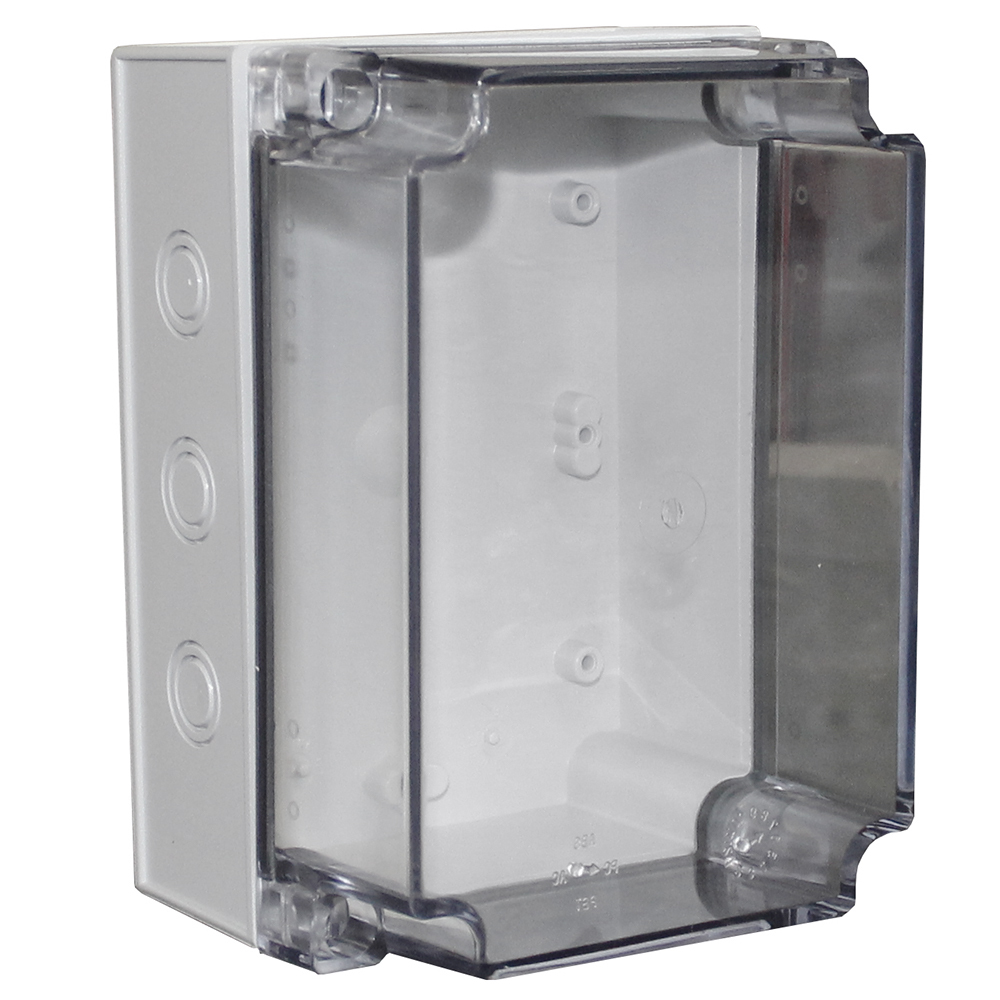

CHDX6-329C – X6 Series Electrical Knockout Enclosure, IP67 ABS Industrial Electronics Enclosure
IP67 ABS case with a clear lid featuring metric knockouts for cable glands. Potential to be used as a energy monitoring industrial enclosure 175x127x75
X6 series has been designed to meet the requirements of IP67IK07/08 impact tested
Screw type lid with knock out base
Moulded in high quality ABS
PCB pillars in the base for PCB mounting
Gasket supplied with the enclosure
Solid lid option available
Captive, polyamide screws included
Designed for high impact resistant electronic enclosures
IIoT Device ready
Technical
| Dimensions | 175 × 125 × 70 mm |
|---|---|
| Colour | Grey |
| Height | 70 |
| Width | 125 |
| Length | 175 |
| IP Rating | IP66-67 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing, Wall Mount |
| Feature | Clear Lid |
| Series | X6 |
Downloads
CHDX6-329C
250.29 KB
