CHDX7-225
330 × 430 × 180 mm
Material: Polycarbonate
Category: All Products, Electrical
X7 Series Electrical Heavy Duty Enclosure, Polycarbonate Industrial IP67 Enclosure
£72.54
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

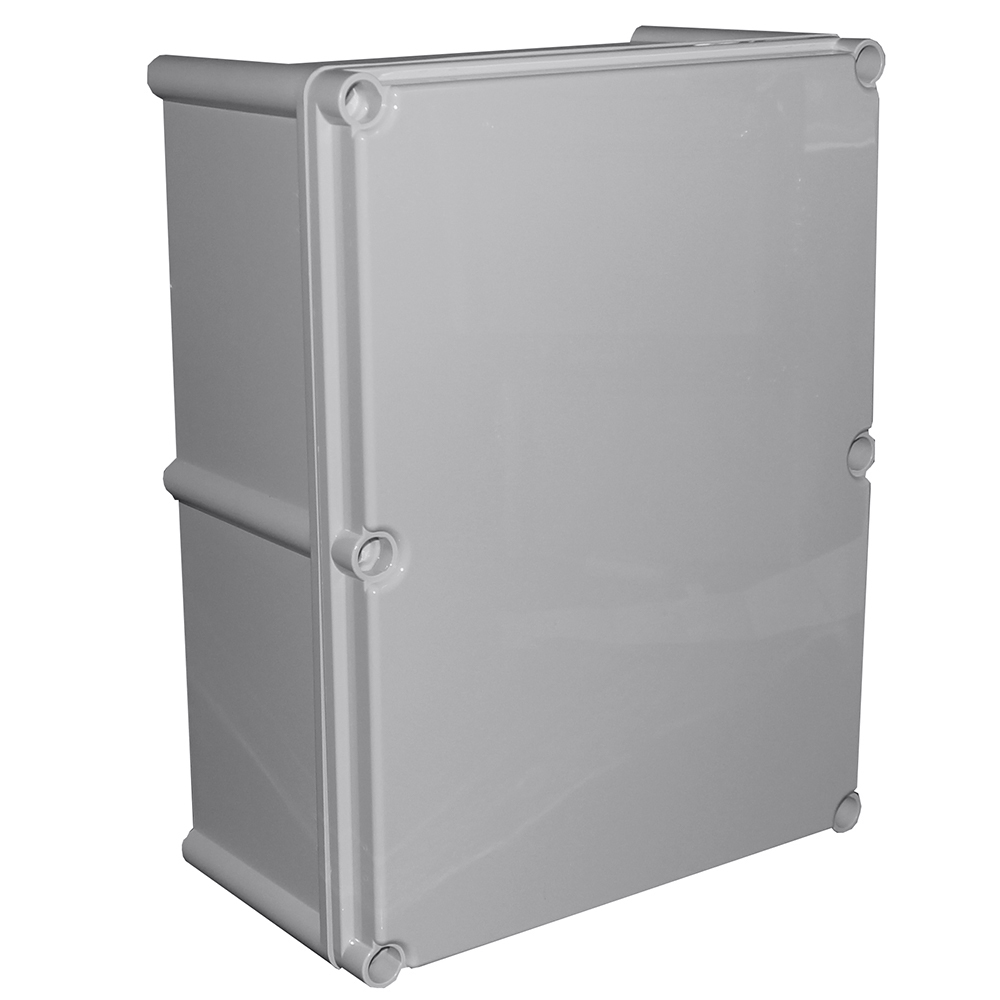

CHDX7-225 – X7 Series Electrical Heavy Duty Enclosure, Polycarbonate Industrial IP67 Enclosure
IP67 Polycarbonate enclosure with a solid lid featuring large heavy duty corners for added robustness. Industry 4.0 ready industrial enclosure ideal for IoT hubs and devices 430x330x180
X7 series has been designed to meet the requirements of IP67IK07/08 impact tested
Heavy duty screw type enclosure
Moulded in high quality Polycarbonate
PCB pillers in the base for PCB mounting
Brass inserts in the base
Gasket supplied with the enclosure
Clear lid option available
Captive, polyamide screws included
The perfect enclosure solution for IoT hubs and industry 4.0 electronics
Technical
| Dimensions | 330 × 430 × 180 mm |
|---|---|
| Width | 430 |
| Length | 330 |
| IP Rating | IP66-67 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Free Standing, Wall Mount |
| Feature | N/A |
| Series | X7 |
