CHDX8-321
260 × 110 × 75 mm
Material: ABS
Category: All Products, Electrical
X8 Series Electrical Hinged Lid Enclosure, ABS Electronics Enclosure, IP67 Industrial
£10.88
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

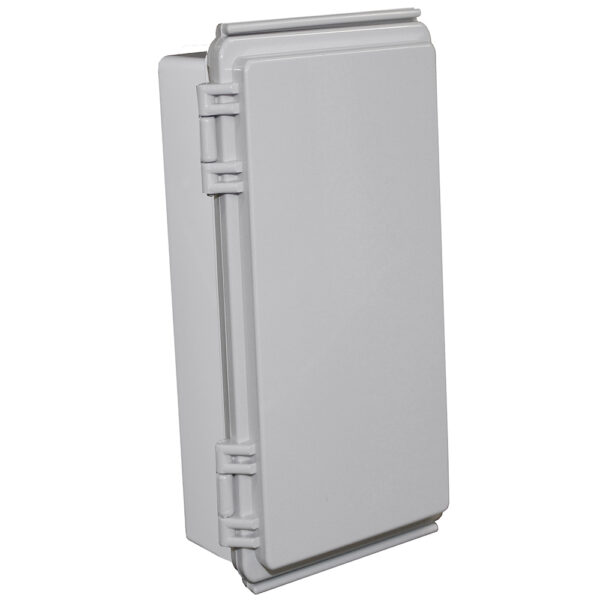

CHDX8-321 – X8 Series Electrical Hinged Lid Enclosure, ABS Electronics Enclosure, IP67 Industrial
IP67 enclosure ABS with a solid lid featuring a hinged lid with latches, perfect for applications such as industrial control panels and medical gas controls 260x110x75
X8 series has been designed to meet the requirements of IP67IK07/08 impact tested
Heavy duty hinge and latch enclosure
Moulded in high quality ABS
PCB pillars in the base for PCB mounting
Brass inserts in the base
Wall Mounting facility accessories available
Clear lid option available
The IoT networking enclosure for smart systems
Industrial electronics housing, display equipment enclosure, control device enclosure
Technical
| Dimensions | 260 × 110 × 75 mm |
|---|---|
| Series | X8 |
| Width | 110 |
| Length | 260 |
| IP Rating | IP66-67 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | Hinged Door, Latched Lid |
Downloads
CHDX8-321
250.79 KB
