45 Series Palm Case Electronic Enclosure_D
691.53 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
£9.66
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

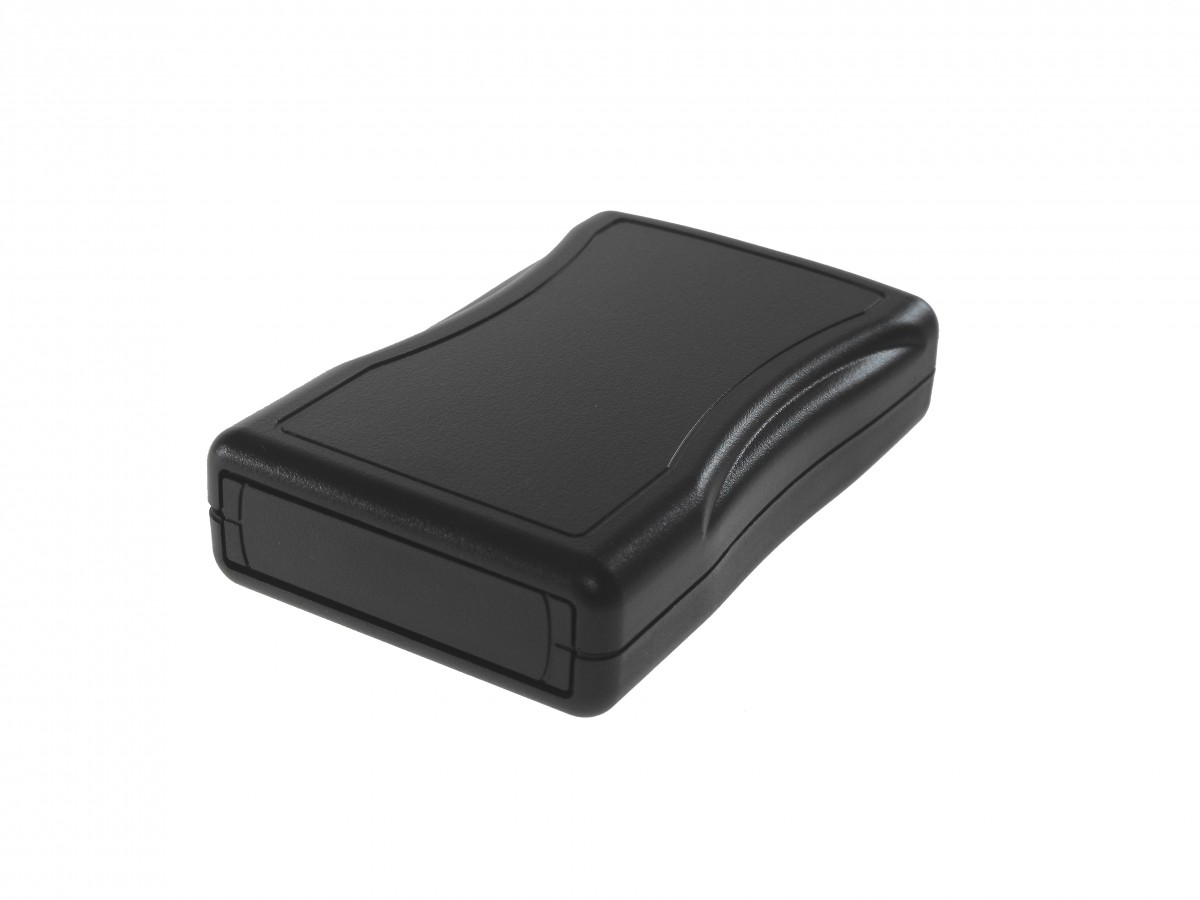

CHH451PBK, 45 Series Palm Case, Black, Textured, PP3 Battery Compartment, Size 1 – 117.5×72.5×25.5
Hand-Held Electronics Enclosure for industrial, IoT, diagnostic and healthcare electronic devices
Moulded in UL94-5VA Flame Retardant ABS
Lid mounted by four self-tapping screws
Removable end panel for ease of access and ideal for machining
ABS end panel version as standard, infra-red end panel version to order
Sliding battery compartment lid options for AA or 9V PP3 batteries
Plain / no battery compartment version available to order
Textured lid versions for consistent all over surface finish
Smooth recess lid version for membrane keypads or overlays
PCB pillars moulded in lid and base, screws available to order
45 series has been designed to meet the requirements of IP54
Technical
| Dimensions | 118 × 72 × 25 mm |
|---|---|
| Colour | Black |
| Height | 25 |
| Width | 72 |
| Length | 118 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-5VA |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Battery Compartment, Recessed Lid |
| Series | 45 |
Downloads
CHH451PBK
325.73 KB
