62 Series Ergonomic Keyfob Enclosure_D
255.16 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CHH622GRY
60 × 40 × 18 mm
Material: ABS
Category: All Products, Hand-Held
62 Series Enclosure, ABS Plastic Enclosures, Hand-Held Equipment Case
£3.31
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
CHH622GRY – 62 Series Enclosure, ABS Plastic Enclosures, Hand-Held Equipment Case

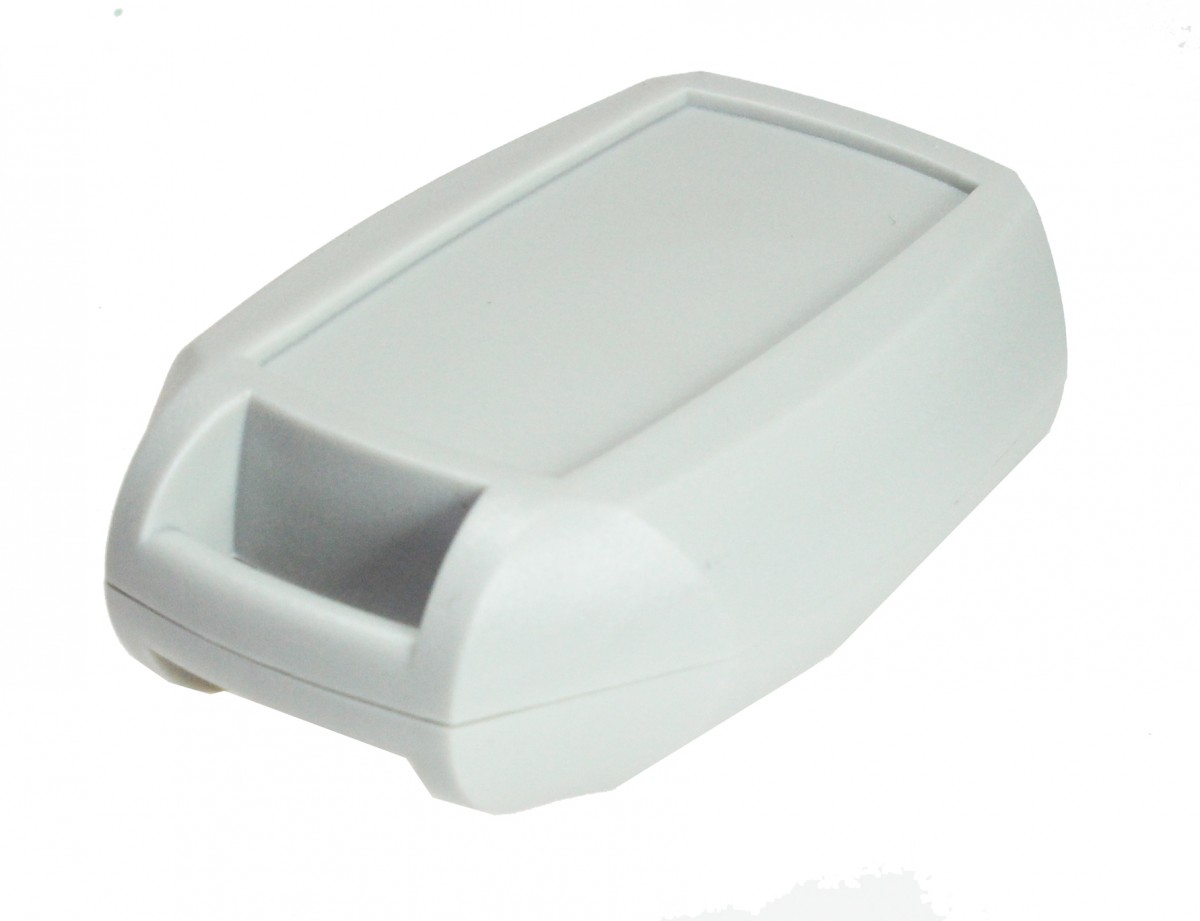

62 Series Pocket Box, Grey, 60x40x18mm, Key Ring Lug
Contemporary range of small robust hand-held boxes with bevelled and rounded edges
Moulded in high impact ABS
Snap-fit assembly
Recesses in lid and base for membrane keypads or overlays
Excellent properties for machining
Key-ring lug style available
62 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the optional gasket accessory
Technical
| Dimensions | 60 × 40 × 18 mm |
|---|---|
| Colour | Grey |
| Height | 18 |
| Width | 40 |
| Length | 60 |
| IP Rating | IP62 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square, Rounded Design |
| Mounting | Hand-Held |
| Feature | Easy Assembly, Recessed Base, Recessed Lid |
| Series | 62 |
Downloads
CHH622GRY
173.62 KB
