64 Series End Cap ABS Handheld Enclosure_D
293.24 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CHH64E1BL
80 × 10 × 20 mm
Material: ABS
Category: All Products, Hand-Held
64 Series Hand-Held Case End Caps
£2.12
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

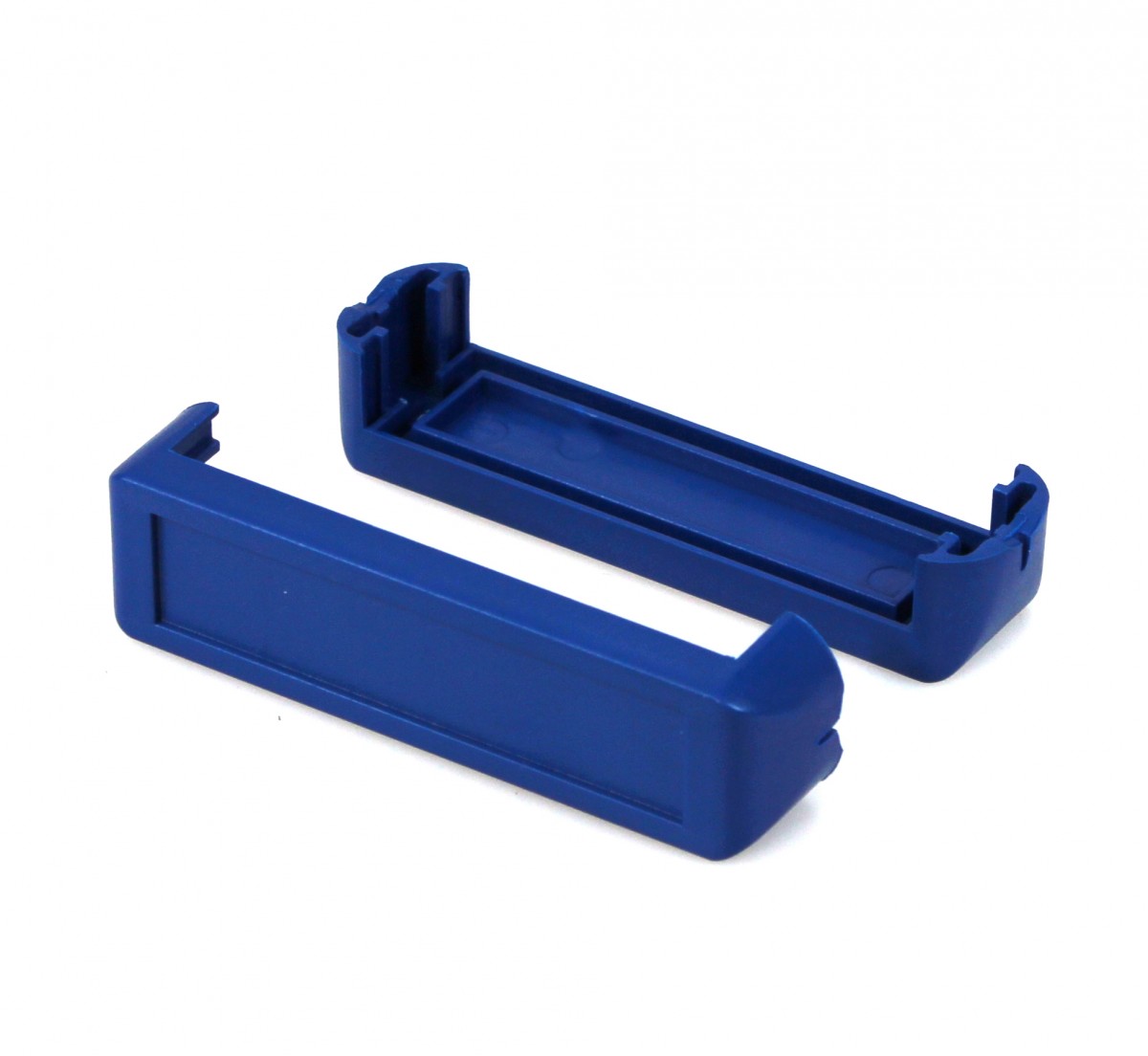

CHH64E1BL – 64 Series Hand-Held Case End Caps
Set of 2 plastic end caps for 64 Series Hand-Held Case, to fit 20mm Enclosure, Blue
Moulded in high grade ABS, UL94-V0
Snap-fit base & lid assembly, via end caps
Battery compartment lid M3 retaining screw
Recesses in lid, base and end caps for membrane keypads or overlays
PCB pillars in lid and base
64 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the optional gasket accessory
Enclosure sold separately
Technical
| Dimensions | 80 × 10 × 20 mm |
|---|---|
| Colour | Blue |
| Height | 20 |
| Width | 10 |
| Length | 80 |
| IP Rating | N/A |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Easy Assembly, Recessed Base, Recessed Lid |
| Series | 64 |
Downloads
CHH64E1BL
183.13 KB
