66 Series Handheld Rubber Corner Enclosure_D
411.91 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CHH662BGY
145 × 95 × 35 mm
Material: ABS
Category: All Products, Hand-Held
66 Series Hand-Held Rubber Corner Enclosure with battery door, Grey, 145x95x35mm
£11.09
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

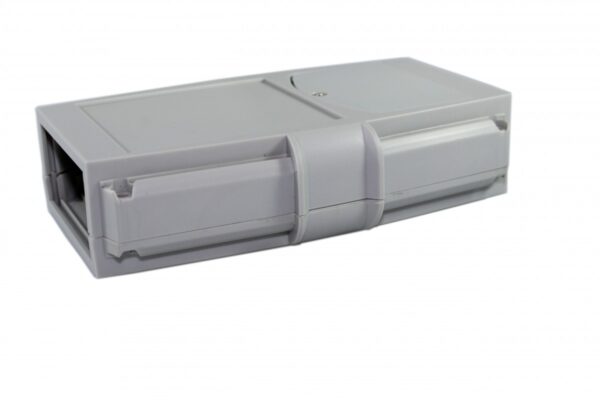

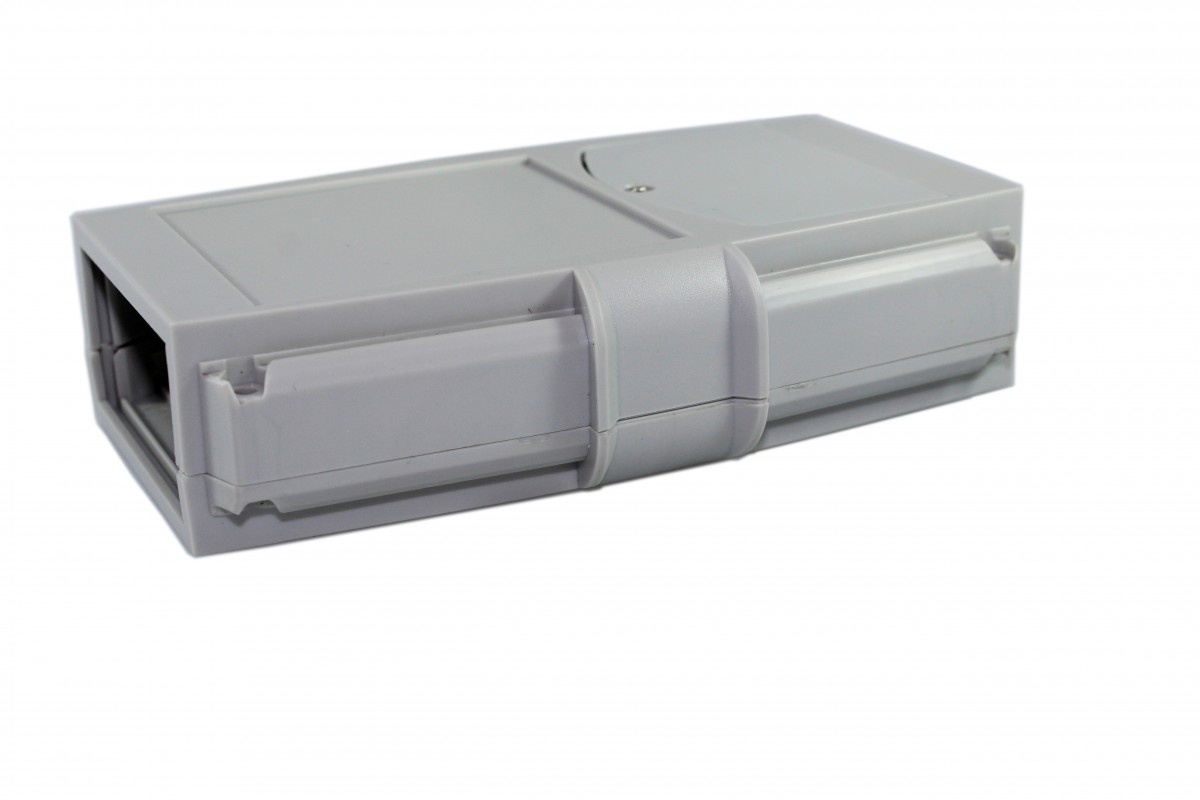

CHH662BGY – 66 Series Hand-Held Rubber Corner Enclosure with battery door, Grey, 145x95x35mm
This innovative Hand-Held ABS enclosure is available in two body colours and in a selection of sizes. The enclosure also features a choice of different coloured rubber corners for added protection and ergonomic feel (sold separately). Ideal for industrial portable measurement equipment and testing devices
Moulded in high impact ABS, UL94-V0
Screwless assembly via four soft-grip corners
Battery compartment lid with M3 retaining screw
Optional retaining screws for added security
Recesses in lid and base for membrane keypads or overlays
PCB pillars in lid and base
66 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the optional gasket accessory
Technical
| Dimensions | 145 × 95 × 35 mm |
|---|---|
| Colour | Grey |
| Height | 35 |
| Width | 95 |
| Length | 145 |
| IP Rating | IP65 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Easy Assembly |
| Series | 66 |
Downloads
CHH662BGY
305.11 KB
