66 Series Handheld Rubber Corner Enclosure_D
411.91 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CHH66C2GY
57 × 35 × 6 mm
Material: Rubber
Category: All Products, Hand-Held
Rubber Corners for 66 Series Hand-Held Enclosure, 35mm, Grey
£7.26
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

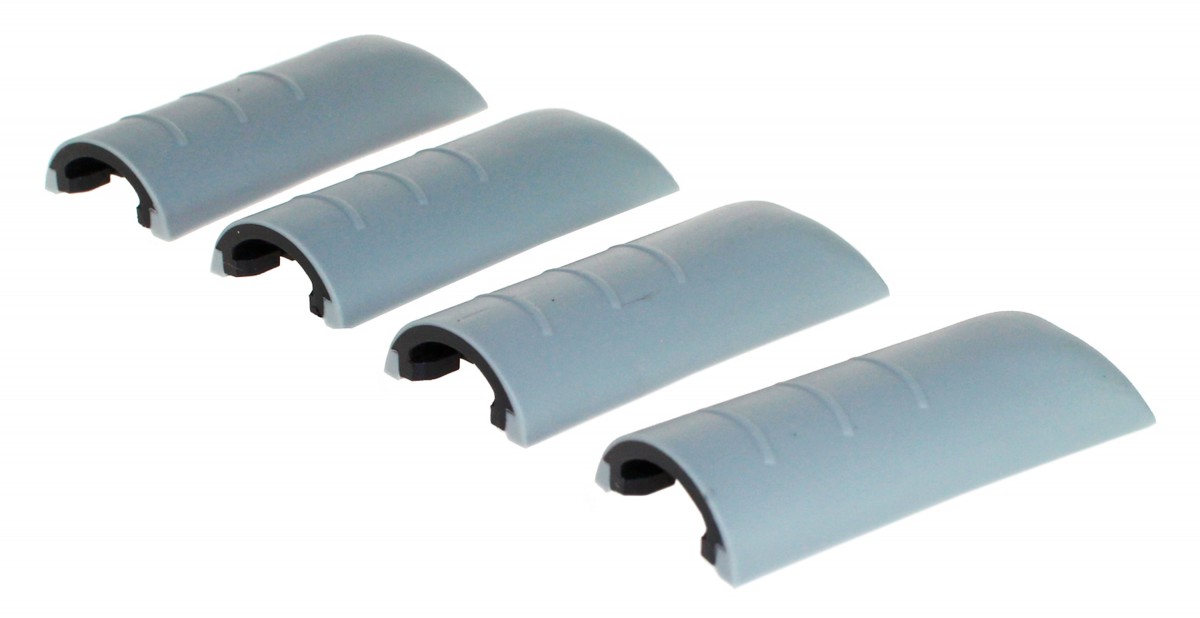

CHH66C2GY – Rubber Corners for 66 Series Hand-Held Enclosure, 35mm, Grey
Set of 4 soft grip rubber corners for 66 Series Hand-Held enclosure
Moulded in high impact ABS, UL94-V0
Screwless assembly via four soft-grip corners
Battery compartment lid with M3 retaining screw
Optional retaining screws for added security
Recesses in lid and base for membrane keypads or overlays
PCB pillars in lid and base
66 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the optional gasket accessory
Technical
| Dimensions | 57 × 35 × 6 mm |
|---|---|
| Colour | Grey |
| Height | 6 |
| Width | 35 |
| Length | 57 |
| IP Rating | N/A |
| Manufacturer | CamdenBoss |
| Material | Rubber |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Easy Assembly |
| Series | 66 |
Downloads
CHH66C2GY
194.93 KB
