CHH879WHC
145 × 96 × 35 mm
Material: ABS
Category: All Products, Hand-Held
White, 4x AA Battery Compartment, Size 9, 145x96x35mm
£12.35
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

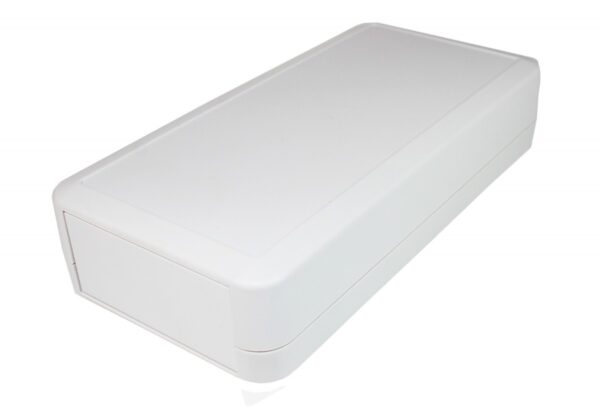

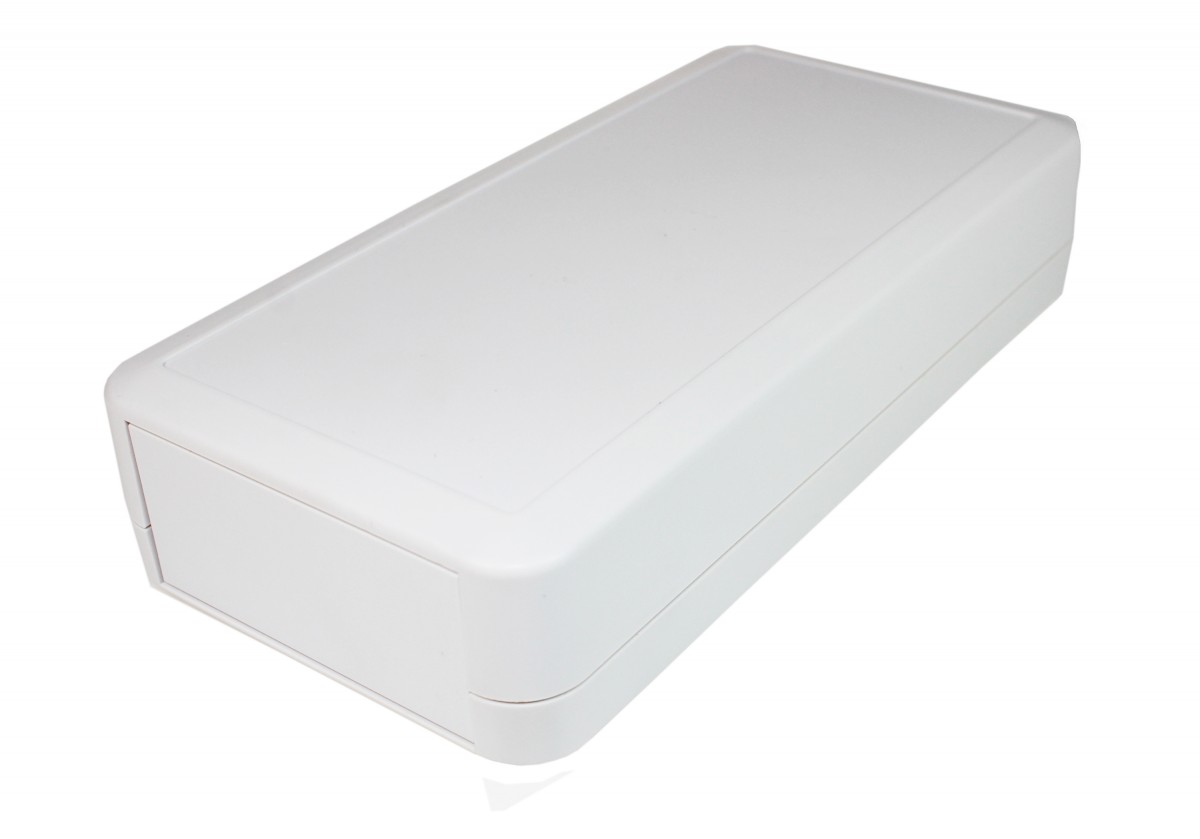

CHH879WHC – 87 Series Silicone Cover Hand-Held Enclosure, Off-White, 4x AA Battery Compartment, Size 9, 145x96x35mm
A high impact ABS Hand-Held enclosure manufactured in UL94-V0. Protective silicon boots are available in a variety of colours, or as a shockproof version. Ideal for wireless portable devices in IIoT factory environments
Available in nine sizes, with or without moulded battery compartments
Recessed front for keypads and labels
Removable end panel
Battery contacts supplied
Silicone cover accessory available
Available in two colours: off-white & dark grey
87 series has been designed to meet the requirements of IP40
Technical
| Dimensions | 145 × 96 × 35 mm |
|---|---|
| Colour | White |
| Height | 35 |
| Width | 96 |
| Length | 145 |
| IP Rating | IP40 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Battery Compartment |
| Series | 87 |
