90 Series Waterproof Soft Grip Handheld Enclosure_D
524.32 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CHH901ABB
146 × 88 × 20 mm
Material: ABS
Category: All Products, Hand-Held
90 Series Enclosure, IP67 Hand-Held Enclosure, Portable Electronic Housing
£18.26
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

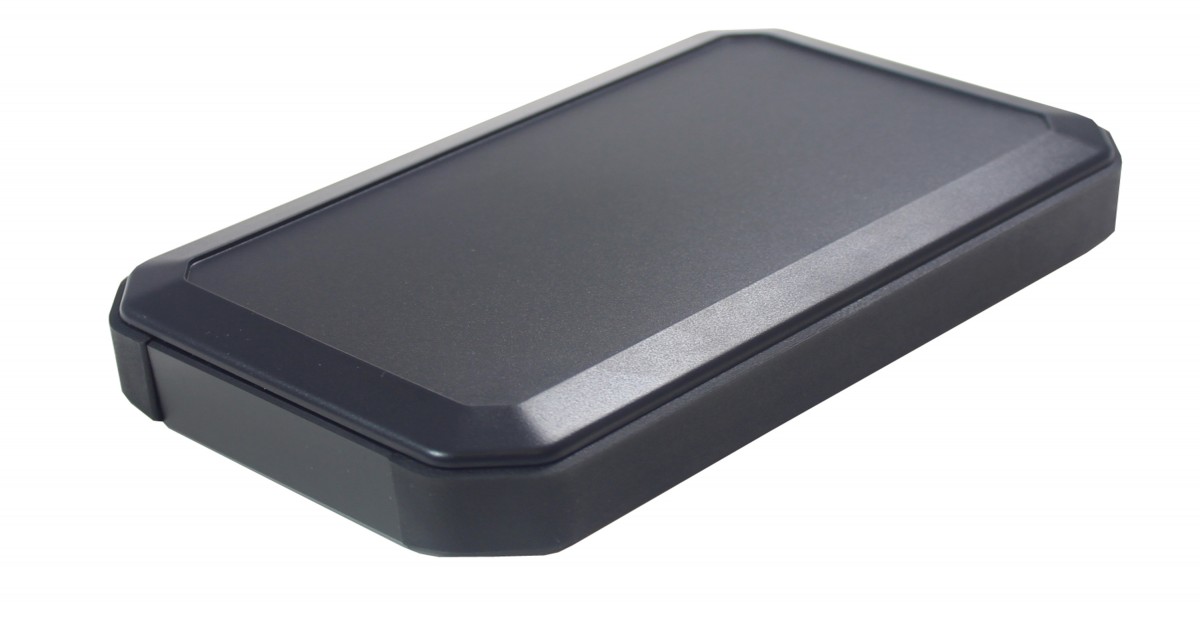

CHH901ABB – 90 Series Enclosure, IP67 Hand-Held Enclosure, Portable Electronic Housing
90 Series IP67 Hand-Held Enclosure, Size 1, 146x88x20mm, x4 AAA Battery Compartment, Black/Black
Manufactured in ABS UL94-V0
Available in black or white
Rubber (TPE) sides provide a soft touch feel and extra protection (five colours available)
Seven types – plain (no battery), x4 AAA, x3 AAA, x2 AAA x4 AA, x3 AA and x2 AA
Suitable for various hand-held apparatus, such as measuring instruments and medical equipment
90 series has been designed to meet the requirements of IP67
Technical
| Dimensions | 146 × 88 × 20 mm |
|---|---|
| Colour | Black |
| Height | 20 |
| Width | 88 |
| Length | 146 |
| IP Rating | IP67 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Battery Compartment |
| Series | 90 |
Downloads
CHH901ABB
375.68 KB
