CIME/E/BE2000E
2000 × 115 × 2 mm
Material: Nylon
Category: All Products, Desktop & Instrument
107mm Extruded Interface Support, Euro DIN Rail PCBsupport, Modular Extrusion
£28.48
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
CIME/E/BE2000E – 107mm Extruded Interface Support, Euro DIN Rail PCBsupport, Modular Extrusion

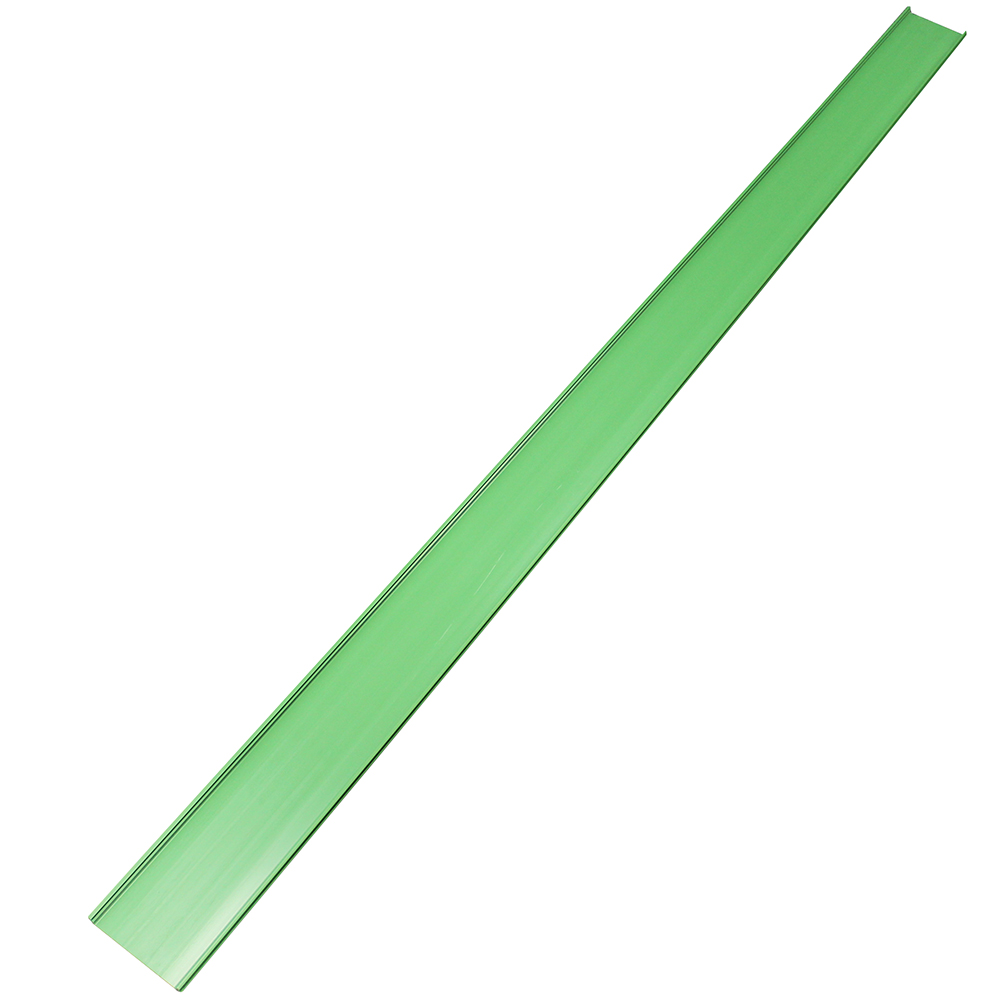

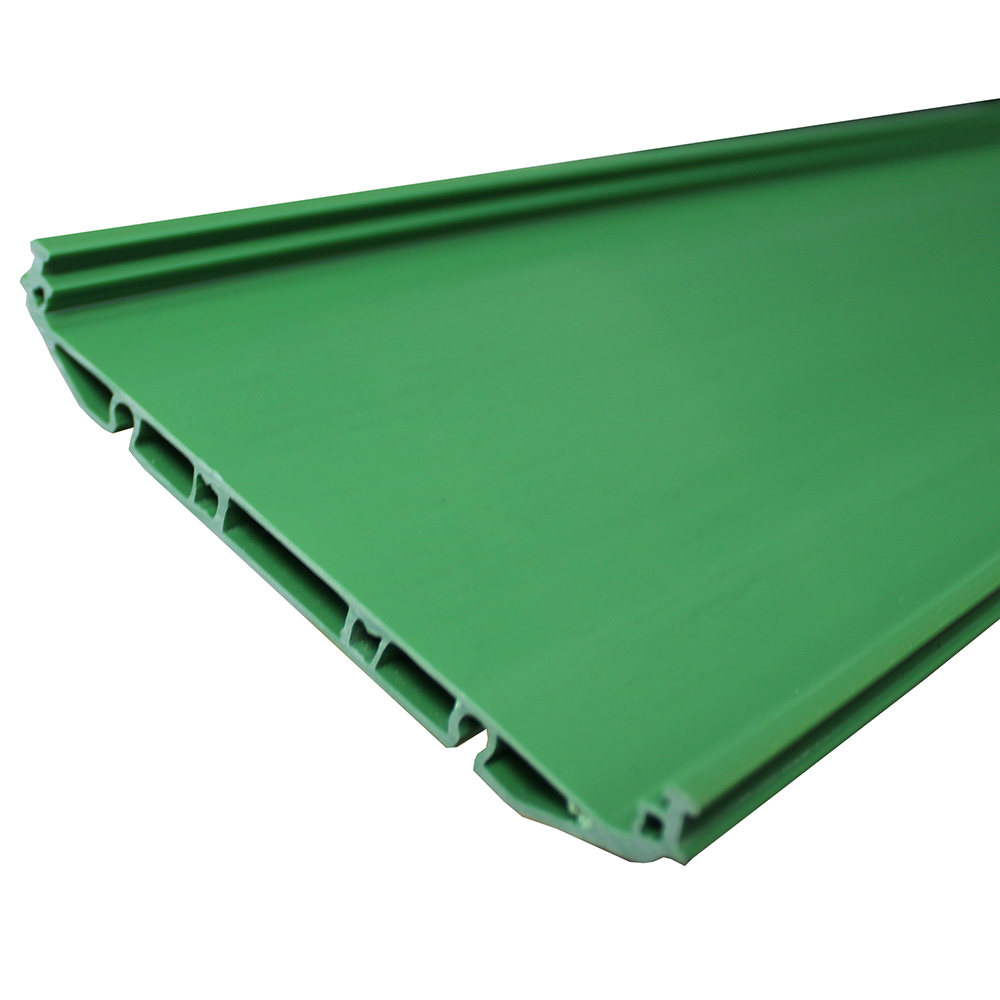

Euro series 107mm Empty Extruded Interface Support, 2000mm Base Element
Suitable for 107mm width PCBs
Snap fit Din Rail mounting fixtures
Available in pre-cut lengths up to 2 metres
Terminal blocks available in same colour
Base is moulded in PVC
End caps and feet are moulded in green UL94-V0 flame retardant PA
?
Technical
| Dimensions | 2000 × 115 × 2 mm |
|---|---|
| Colour | Green |
| Height | 2 |
| Width | 115 |
| Length | 2000 |
| IP Rating | N/A |
| Manufacturer | CamdenBoss |
| Material | Nylon |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | N/A |
| Feature | N/A |
| Series | CIME |
