CIME/M/EC0000E
75 × 18 × 3 mm
Material: Nylon
Category: All Products, Desktop & Instrument
72mm Extruded Interface Support, Mini DIN Rail PCBsupport, Modular Extrusion
£0.25
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

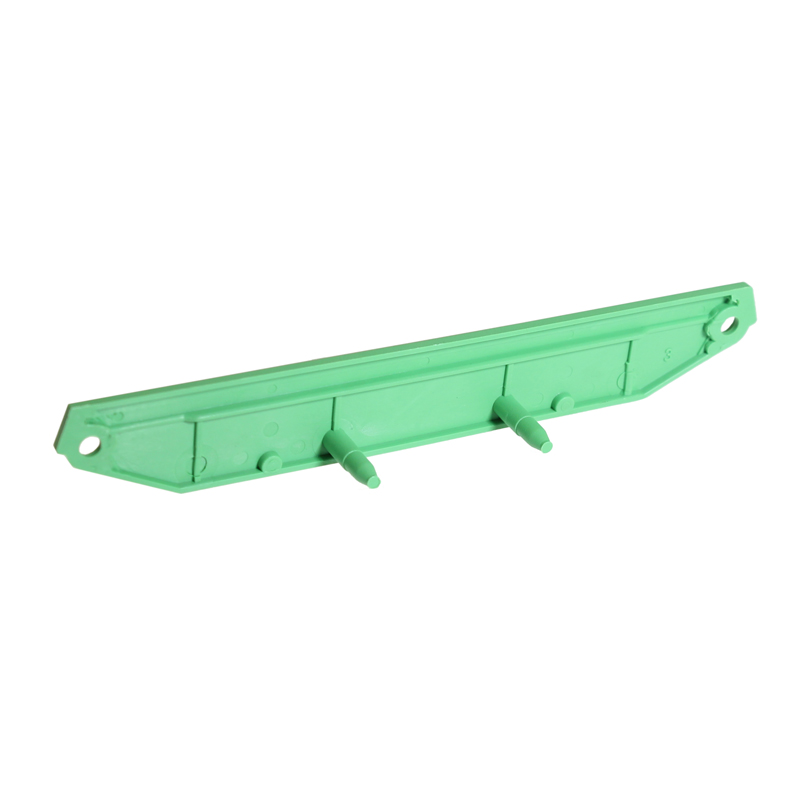

CIME/M/EC0000E – 72mm Extruded Interface Support, Mini DIN Rail PCBsupport, Modular Extrusion
Mini Series 72mm Empty Extruded Interface Support, End Cover
Suitable for 72mm width PCBs
Snap fit Din Rail mounting fixtures
Available in pre-cut lengths up to 2 metres
Terminal blocks available in same colour
Base is moulded in PVC
End caps and feet are moulded in green UL94-V0 flame retardant PA
?
Technical
| Dimensions | 75 × 18 × 3 mm |
|---|---|
| Colour | Green |
| Height | 3 |
| Width | 18 |
| Length | 75 |
| IP Rating | N/A |
| Manufacturer | CamdenBoss |
| Material | Nylon |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | N/A |
| Feature | N/A |
| Series | CIME |
Downloads
CIME_M_EC0000E
170.39 KB
