CIME/M/FE0000E

90 × 20 × 18 mm

Material: Nylon

Category: All Products, Desktop & Instrument

72mm Extruded Interface Support, Mini DIN Rail PCBsupport, Modular Extrusion
£0.38

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

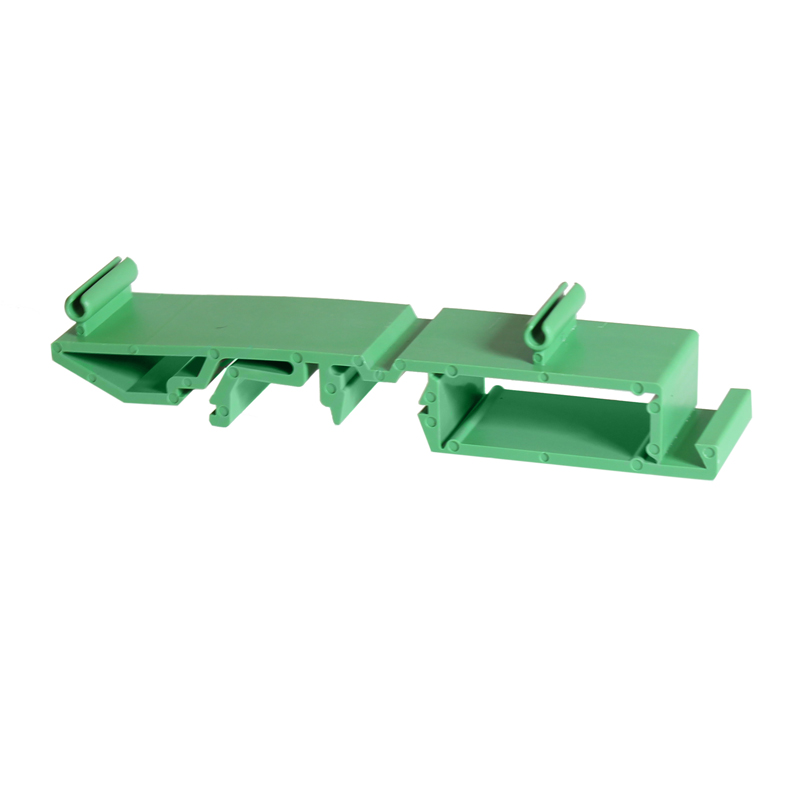

CIME/M/FE0000E – 72mm Extruded Interface Support, Mini DIN Rail PCBsupport, Modular Extrusion

Mini Series 72mm Empty Extruded Interface Support, Foot Element

Suitable for 72mm width PCBs
Snap fit Din Rail mounting fixtures
Available in pre-cut lengths up to 2 metres
Terminal blocks available in same colour
Base is moulded in PVC
End caps and feet are moulded in green UL94-V0 flame retardant PA
?

Technical

Dimensions 90 × 20 × 18 mm
Colour

Green

Height

18

Width

20

Length

90

IP Rating

N/A

Manufacturer

CamdenBoss

Material

Nylon

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

N/A

Feature

N/A

Series

CIME

Downloads

CIME_M_E_series_D

213.65 KB

CIME_M_FE0000E

170.38 KB
