CJB894PLG

40 × 60 × 24 mm

Material: PBT

Category: All Products, Electrical

89 Series Junction Box, IP65 Cable Junction Housing
£21.55

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

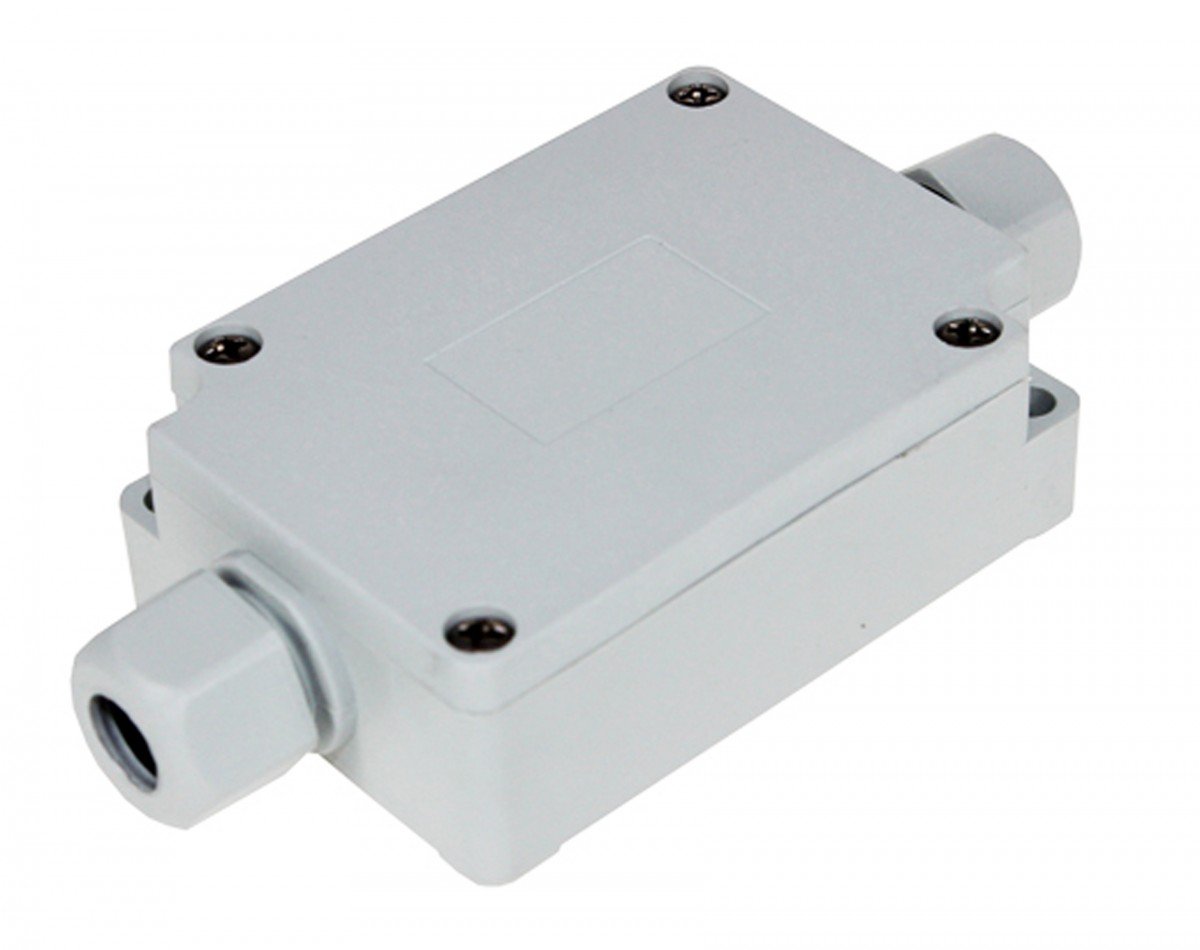

CJB894PLG – 89 Series Junction Box, IP65 Cable Junction Housing

89 Series Terminal Block Junction Box, 4 Pole, Grey, 40x60x24mm

Integrated junction box consisting of cable glands and a terminal block
89 series has been designed to meet the requirements of IP65
Available in 3, 4 and 6 poles
Supplied with 2 pcs each of 5mm and 7.4mm rubber cable bushes
Available in light grey and black
Suitable for industrial applications, power cable joints, wiring for motors or sensors

Technical

Dimensions 40 × 60 × 24 mm
Colour

Grey

Height

24

Width

60

Length

40

IP Rating

IP65

Manufacturer

CamdenBoss

Material

PBT

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

Wall Mount

Feature

N/A

Series

89

Downloads

89 Series Terminal Block Junction Box Enclosure_D

200.36 KB

CJB894PLG

174.58 KB
