CMEB Series Datasheet
793.76 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CMEB/1ST/E/KIT
90 × 18 × 61 mm
Material: Polycarbonate
Category: All Products, DIN Rail
Solid Top Extension Kit for DIN Rail Terminal Enclosure
£7.90
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

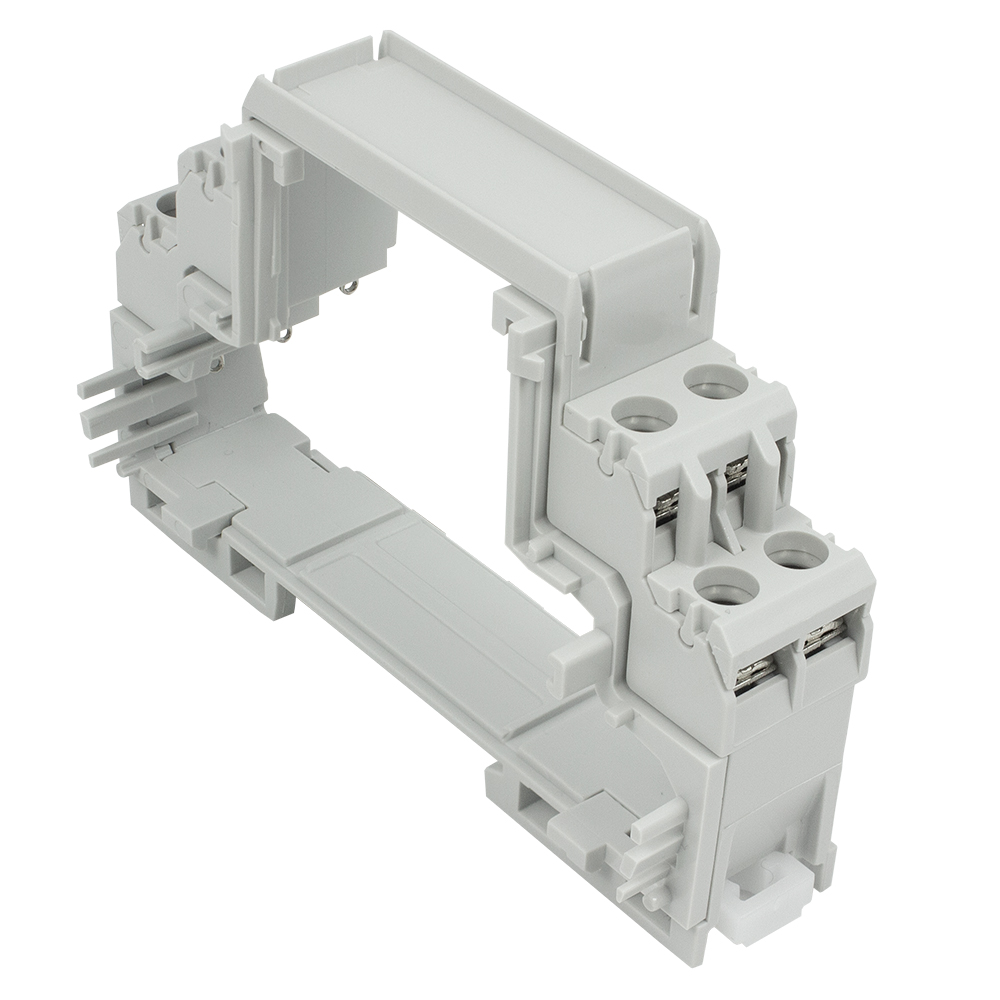

CMEB/1ST/E/KIT – Solid Top Extension Kit for DIN Rail Terminal Enclosure
Single DIN rail mounting module with a solid top and extension kit
The CMEB Extendable DIN Rail Terminal Enclosure features two removable side panels offering accessible internal wiring. Unique extension parts can be used to connect multiple modules together, providing more poles and wiring options. Internal solder tags offer an effective way of connecting to PCBs or flying wires. The new and improved CMEB accommodates full-size internal PCBs, with the extended version supporting horizontal and vertical PCBs or separators between high and low-power sides.
Technical
| Dimensions | 90 × 18 × 61 mm |
|---|---|
| Colour | Grey |
| Height | 61 |
| Width | 18 |
| Length | 90 |
| IP Rating | IP20 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-V0 |
| Shape | Top Hat |
| Mounting | DIN Rail |
| Feature | Easy Assembly |
| Series | CMEB |
Downloads
CMEB_1ST_E_KIT
320.11 KB
