CNMB DIN Rail Modular Enclosure_D
1.6 MB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CNMB/12/2
212 × 90 × 58 mm
Material: Polycarbonate
Category: All Products, DIN Rail
DIN Rail Module Box, Polycarbonate Enclosure, Industrial IoT Electronics Housing
£6.53
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

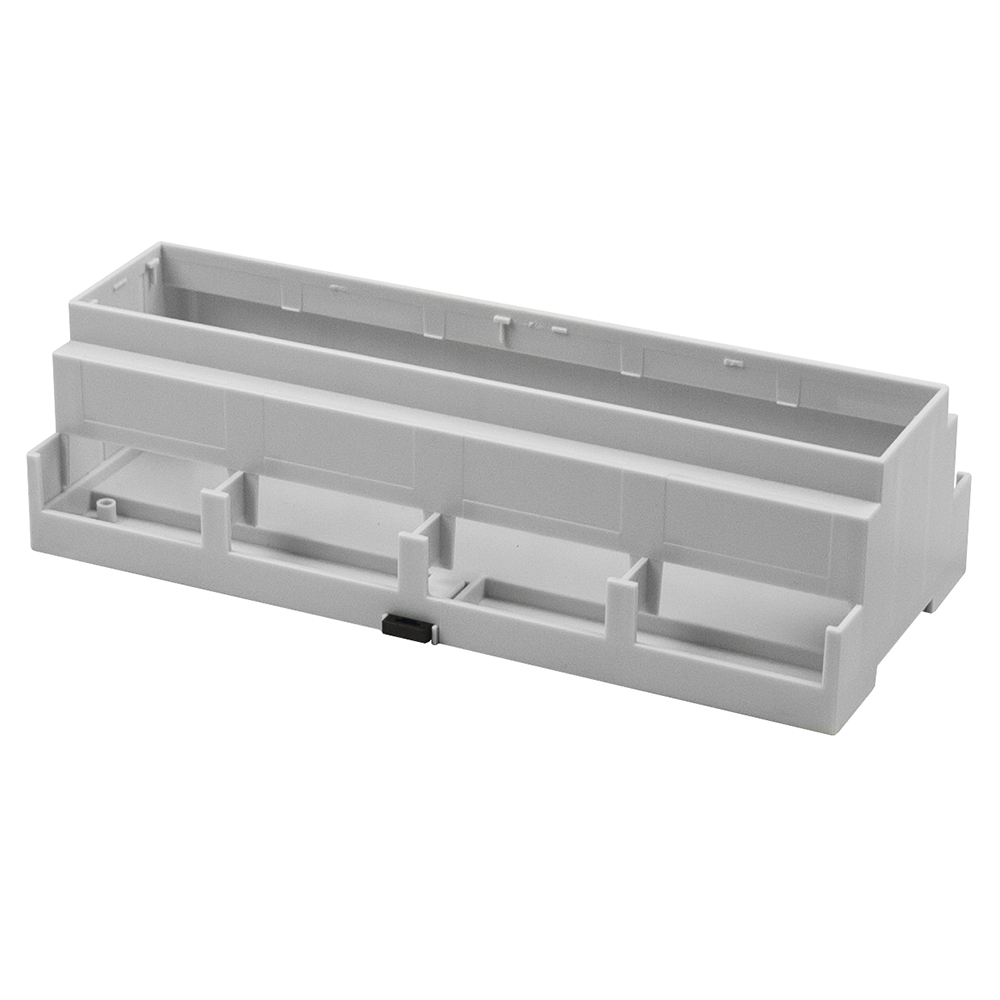

CNMB/12/2 – DIN Rail Module Box, Polycarbonate Enclosure, Industrial IoT Electronics Housing
CNMB Series DIN Rail Standard Height Module Box, Size 12, Open Top, Both Sides Open
Snap fit modular design for ease of assembly and custom kitting
Base fits 35mm DIN rail or directly to flat surface
Moulded in light grey UL94-V0 flame retardant polycarbonate
Carries up to 3 PCBs horizontally or 2 vertically
Snap fit terminal cover options for IP20 finger protection
Snap in covers available in grey, clear, transparent red and smoked
Open top as standard, solid top, vented and extended wall options available
Covers and terminal guards ordered separately and can be supplied in kits
Easily customised covers and terminal guards
Perfect for centralised IoT systems and HVAC devices
Technical
| Dimensions | 212 × 90 × 58 mm |
|---|---|
| Colour | Grey |
| Height | 58 |
| Width | 90 |
| Length | 212 |
| IP Rating | IP20 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | DIN Rail |
| Feature | Easy Assembly |
| Series | CNMB |
Downloads
CNMB_12_2
217.17 KB
