CNMB/2/E

35 × 42 × 16 mm

Material: Polycarbonate

Category: All Products, DIN Rail

DIN Rail Box Extended Height Module
£0.57

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

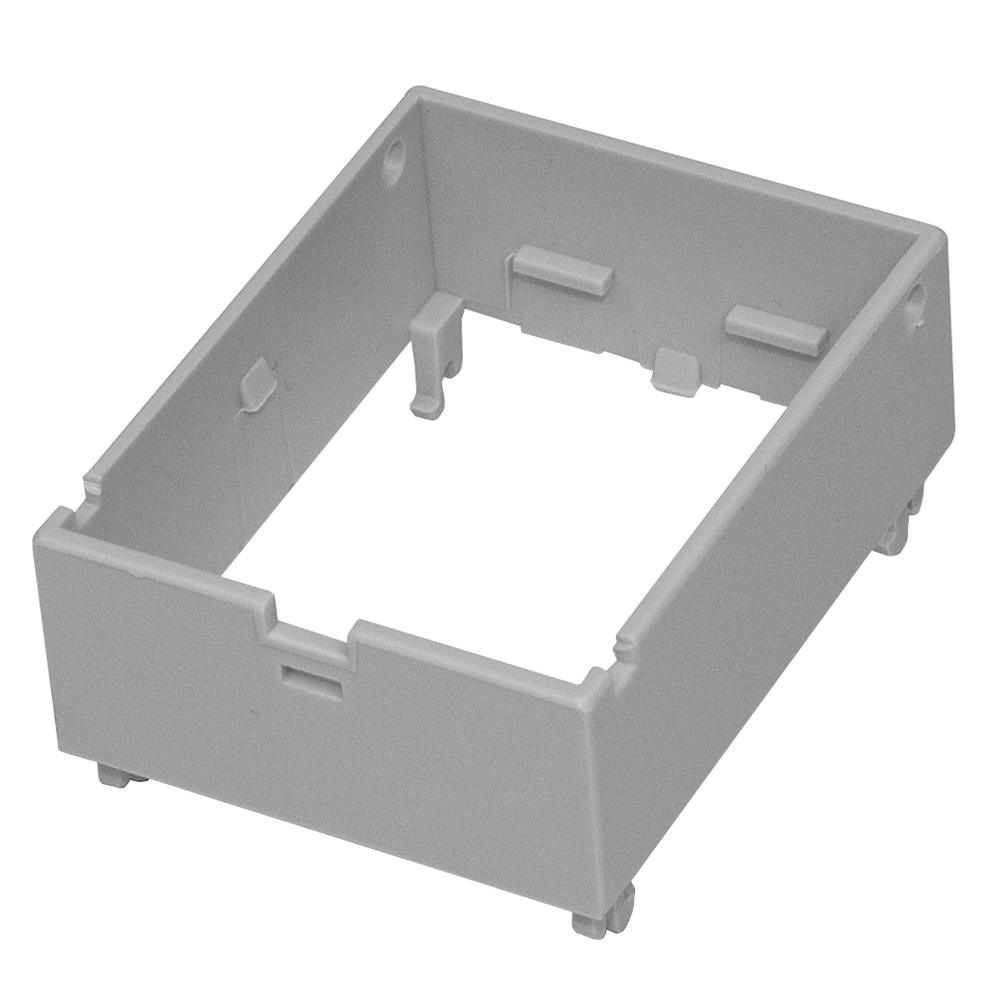

CNMB/2/E – DIN Rail Box Extended Height Module

CNMB Series DIN Rail Standard Height Module Box, Extended Height Module, Size 2

16mm Height
Accepts hinged, curved lid
Adds an additional horizontal PCBslot

Technical

Dimensions 35 × 42 × 16 mm
Colour

Grey

Height

16

Width

42

Length

35

IP Rating

IP00

Manufacturer

CamdenBoss

Material

Polycarbonate

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

DIN Rail

Feature

Easy Assembly

Series

CNMB

Downloads

CNMB DIN Rail Modular Enclosure_D

1.6 MB
