CNMB/6E/KIT
90 × 106 × 58 mm
Material: Polycarbonate
Category: All Products, DIN Rail
DIN Rail Box Extended Height Module
£4.80
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

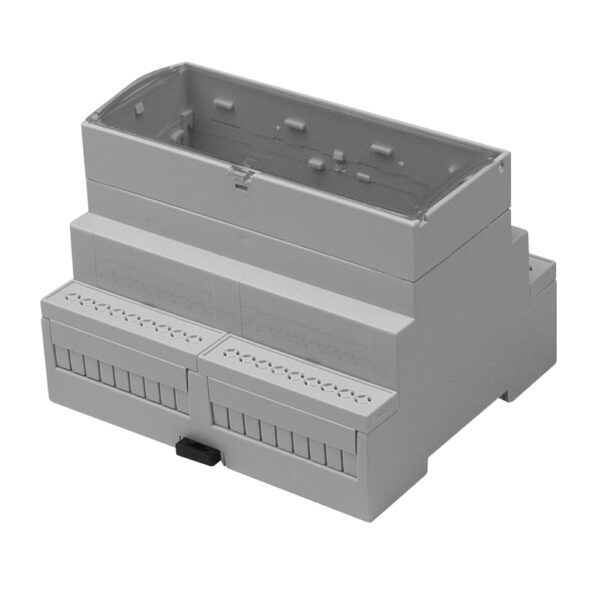

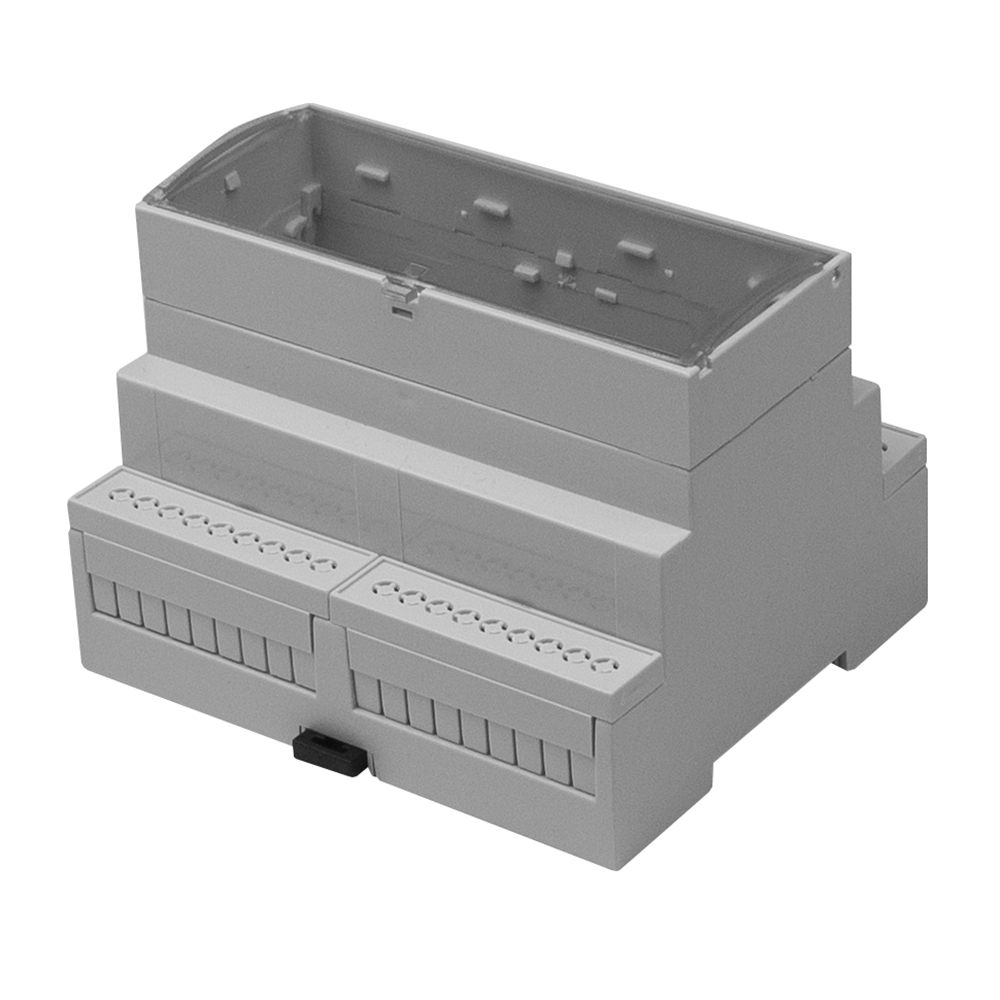

CNMB/6E/KIT – DIN Rail Box Extended Height Module
CNMB Series DIN Rail Standard Height Module Box Kit, Size 6, Open Top, Extended Height, Both Sides Open. This UK manufactured enclosure is moulded in UL94-V0 polycarbonate.
Snap fit modular design for ease of assembly and custom kitting
Base fits 35mm DIN rail or directly to flat surface
Moulded in light grey UL94-V0 flame retardant polycarbonate
Snap fit terminal cover options for IP20 finger protection
Includes 16mm extension for extra height
Accepts hinged, curved lid
Adds an additional horizontal PCBslot
Technical
| Dimensions | 90 × 106 × 58 mm |
|---|---|
| Colour | Grey |
| Height | 58 |
| Width | 106 |
| Length | 90 |
| IP Rating | IP20 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | DIN Rail |
| Feature | Easy Assembly |
| Series | CNMB |
