7000 Series Multipurpose Recessed Electronic Enclosure_D
275.26 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CRDCG0001
90 × 55 × 25 mm
Material: ABS
Category: All Products, General Purpose Plastic
7000 Series Multipurpose Electronic ABS Enclosure
£3.45
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

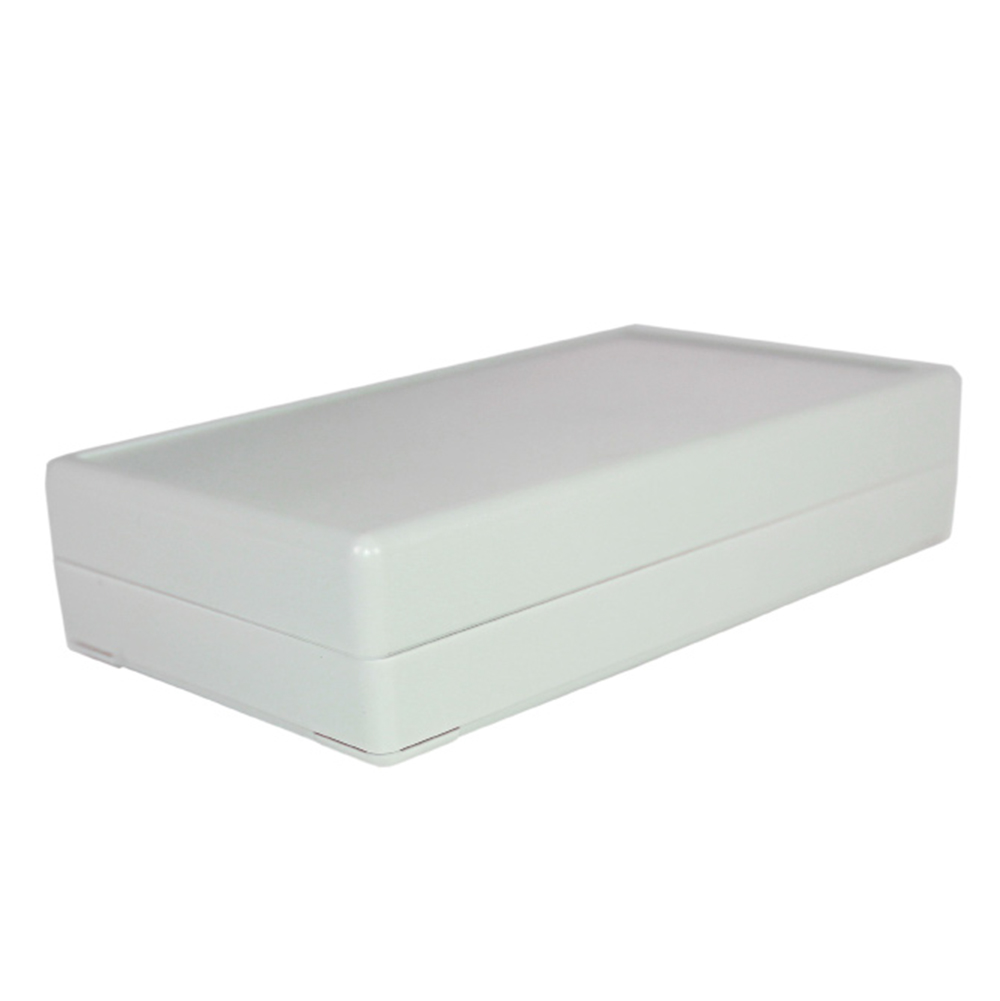

CRDCG0001 – 7000 Series Multipurpose Electronic ABS Enclosure
7000 series designer recessed enclosure, grey, size 1, 90x55x25mm. Ideal for a variety of electrical applications such as Hand-Held electronics, desktop equipment and Wall Mountable IoT devices
Lid and base moulded in ABS
Lid mounted by four M3 machine screws
Plastic screw covers for aesthetic appearance
Fine texture anti-scratch finish
Recesses in lid and base designed to accept membrane keypads or overlays
Integral mounting guides in lid and base for vertical PCB mounting
PCB pillars in lid and base
Surface mountable via moulded fixing points or Wall Mounting kit (optional)
7000 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the gasket accessory
Technical
| Dimensions | 90 × 55 × 25 mm |
|---|---|
| Colour | Grey |
| Height | 25 |
| Width | 55 |
| Length | 90 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | Recessed Lid |
| Series | 7000 |
