CSACST006
220 × 140 × 90 mm
Material: ABS
Category: All Products, General Purpose Plastic
1100 Series Recessed Electronics Enclosure with solid lid, grey, 220x140x90mm
£13.47
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

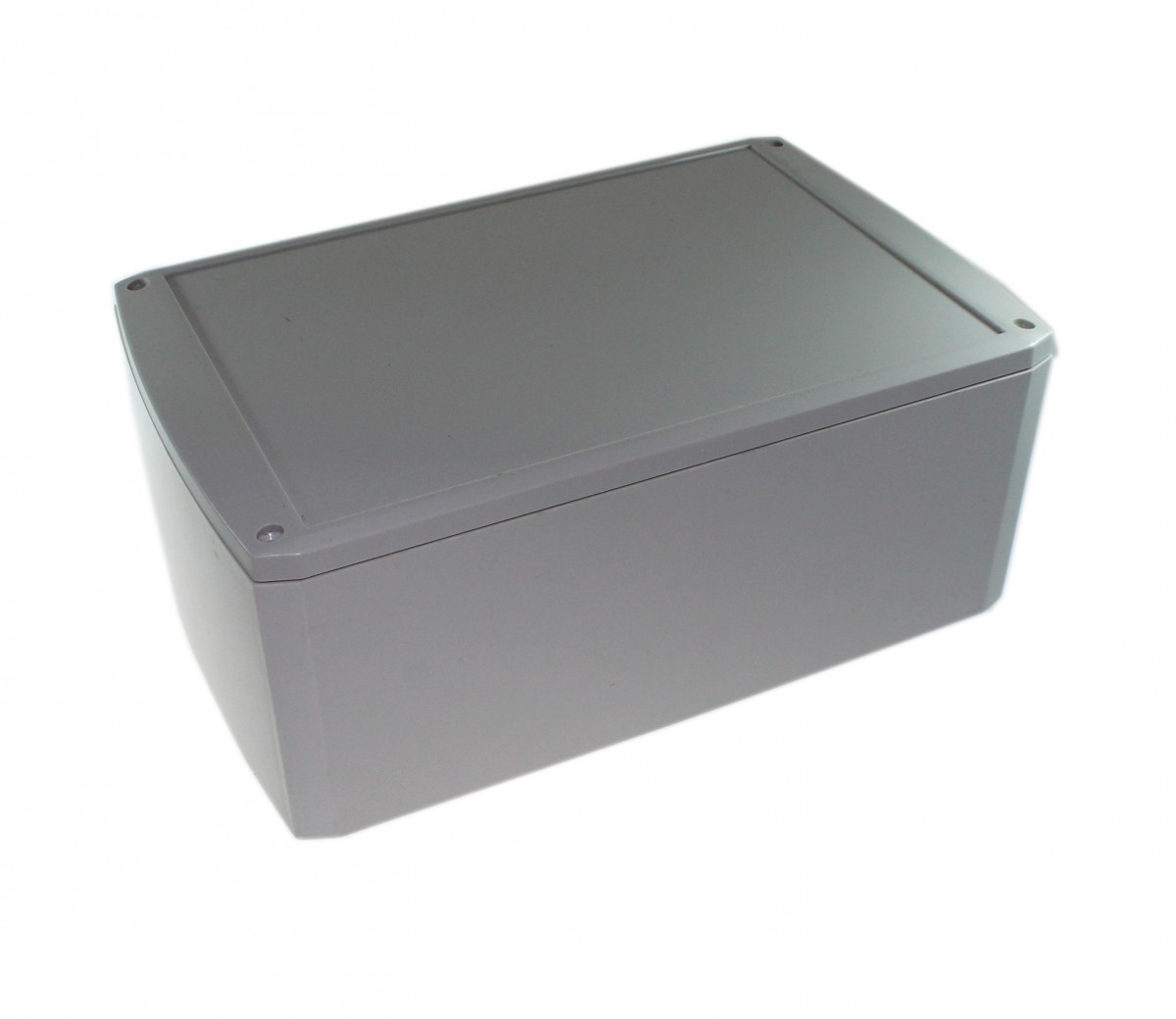

CSACST006 – 1100 Series Recessed Electronics Enclosure with solid lid, grey, 220x140x90mm
1100 series multi-purpose ABS electronic enclosure is ideal for a range of user facing electronics devices and technology in industries such as industrial, medical and IoT.
Designed with aesthetically pleasing external bevelled edges and smooth curved sides
Lid and base moulded in UL94-V0 ABS
Lid mounted by four self tapping screws
1.2mm recess in both the lid and base for product labels and overlays
Deep profile maximises the internal volume for increased component and PCBspace
This enclosure is 100% recyclable and manufactured in the UK
Plastic standoffs in base for mounting of PCBs
Excellent properties for machining and customisation
Also available with a transparent lid
1100 series has been designed to meet the requirements of IP54
Technical
| Dimensions | 220 × 140 × 90 mm |
|---|---|
| Colour | Grey |
| Height | 90 |
| Width | 140 |
| Length | 220 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-40 |
| Shape | Rectangular/Square, Rounded Design |
| Mounting | DIN Rail, Free Standing, Wall Mount |
| Feature | Recessed Lid |
| Series | 1100 |
