1100 series recessed electronics enclosure_D
710.39 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CSACTT006
220 × 140 × 90 mm
Material: ABS
Category: All Products, General Purpose Plastic

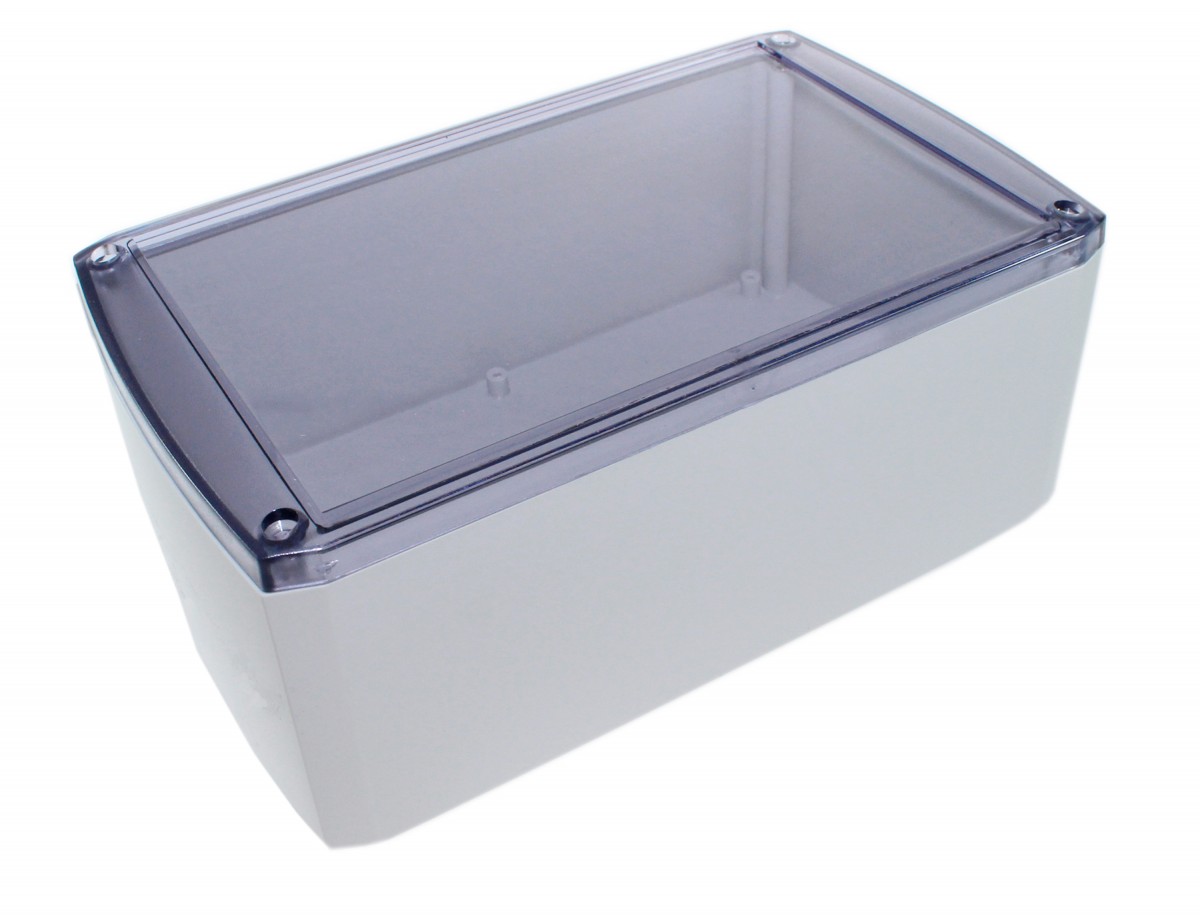

1100 Series Recessed Electronics Enclosure with transparent lid, grey, 220x140x90mm
£14.57
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
CSACTT006 – 1100 Series Recessed Electronics Enclosure with transparent lid, grey, 220x140x90mm
1100 series multi-purpose electronic enclosure with transparent lid is ideal for a variety of general purpose and IoT applications that require visible electronics.
Designed with aesthetically pleasing external bevelled edges and smooth curved sides
Base moulded in UL94-V0 ABS and transparent lid in UL94-V0 polycarbonate
Lid mounted by four self tapping screws
1.2mm recess in both the lid and base for product labels and overlays
Deep profile maximises the internal volume for increased component and PCBspace
This enclosure is 100% recyclable and manufactured in the UK
Plastic standoffs in base for mounting of PCBs
Excellent properties for machining and customisation
Also available with a solid lid
1100 series has been designed to meet the requirements of IP54
Technical
| Dimensions | 220 × 140 × 90 mm |
|---|---|
| Colour | Grey |
| Height | 90 |
| Width | 140 |
| Length | 220 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square, Rounded Design |
| Mounting | DIN Rail, Free Standing, Wall Mount |
| Feature | Clear Lid, Recessed Lid |
| Series | 1100 |
Downloads
CSACTT006
187.12 KB
