82 Series Multipurpose ABS Enclosure_D
424.62 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CUE8206WH
70 × 50 × 40 mm
Material: ABS
Category: All Products, General Purpose Plastic
Purpose Enclosure
£3.22
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

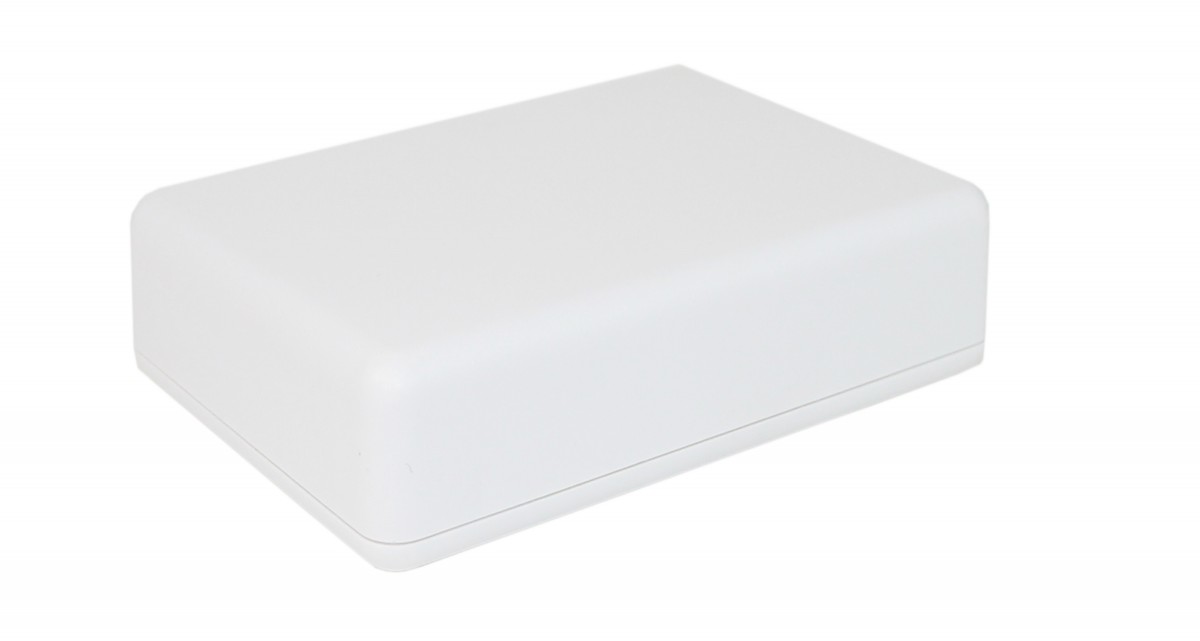

CUE8206WH – 82 Series Multi-Purpose Enclosure
82 Series multi-purpose electronics enclosure, size 6, white, 70 x 50 x 40mm
Multi-purpose ABS cases, designed for a broad range of applications
Universal plastic enclosure with screw fastening
Suitable for measuring instruments, wireless communication devices, medical devices etc.
Available in 23 sizes in two colours: white & black
Black enclosures UL94-HB
White enclosures UL94-V0 and UL94-V1
82 series has been designed to meet the requirements of IP40
Technical
| Dimensions | 70 × 50 × 40 mm |
|---|---|
| Colour | White |
| Height | 40 |
| Width | 50 |
| Length | 70 |
| IP Rating | IP40 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V1 |
| Shape | Rectangular/Square |
| Mounting | Free Standing, Hand-Held |
| Feature | Rubber Boots available |
| Series | 82 |
Downloads
CUE8206WH
222.39 KB
