83 Series Multipurpose Flanged ABS Enclosure_D
177.43 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CUE8322WH
206 × 126 × 45 mm
Material: ABS
Category: All Products, General Purpose Plastic
83 Series General Purpose ABS Enclosure With Mounting Flanges
£11.11
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

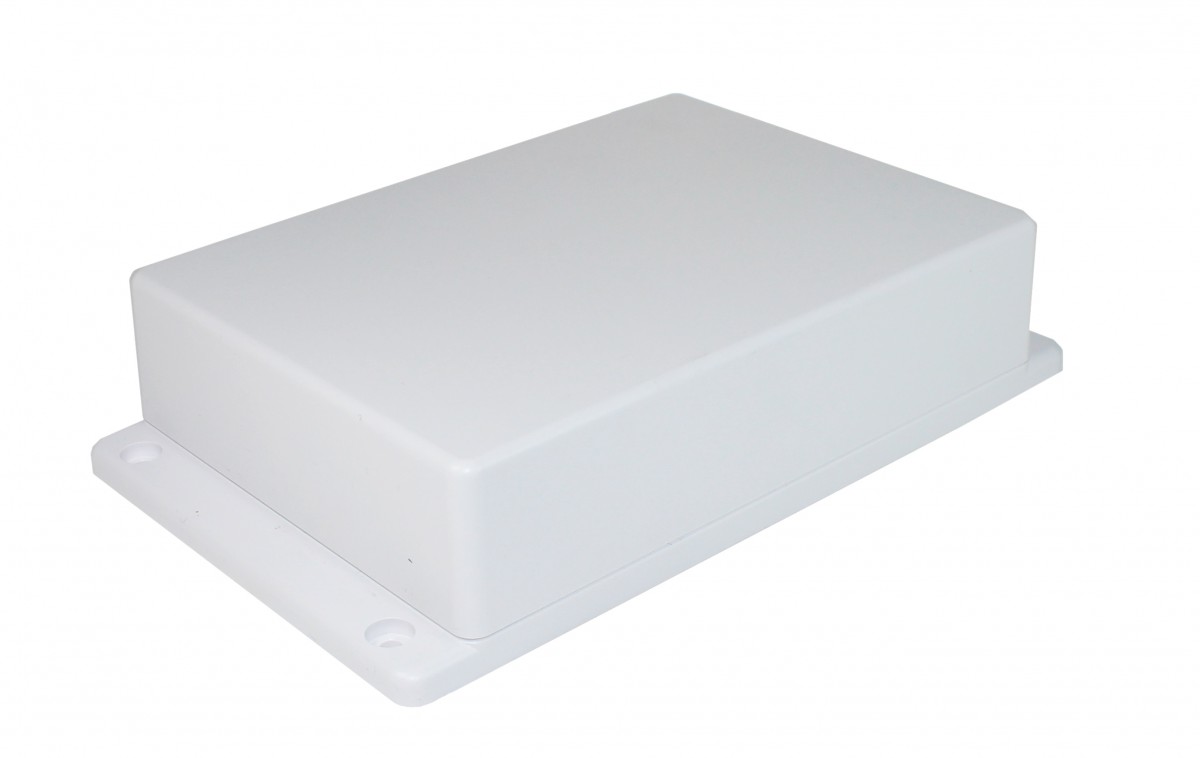

CUE8322WH – 83 Series General Purpose ABS Enclosure With Mounting Flanges
83 Series Plastic Flanged Case, White, 205.6 x 125.6 x 45mm
Multi-purpose flanged enclosure designed for Wall Mounting or surface mount devices
Suitable for measuring instruments, communication device, controller etc.
Lid and base moulded in flame resistant ABS
Lid mounted by four M3 machine screws
Excellent properties for machining
Available in 18 sizes in white & dark grey, UL94-V0
83 series has been designed to meet the requirements of IP40
Technical
| Dimensions | 206 × 126 × 45 mm |
|---|---|
| Colour | White |
| Height | 45 |
| Width | 126 |
| Length | 206 |
| IP Rating | IP40 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | Flanged |
| Series | 83 |
Downloads
CUE8322WH
249.09 KB
