CVB-PLUS1V
112 × 23 × 99 mm
Material: Polycarbonate
Category: All Products, DIN Rail
22.5mm DIN Rail Drive and Control and Industrial Electronic Enclosure
£11.44
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

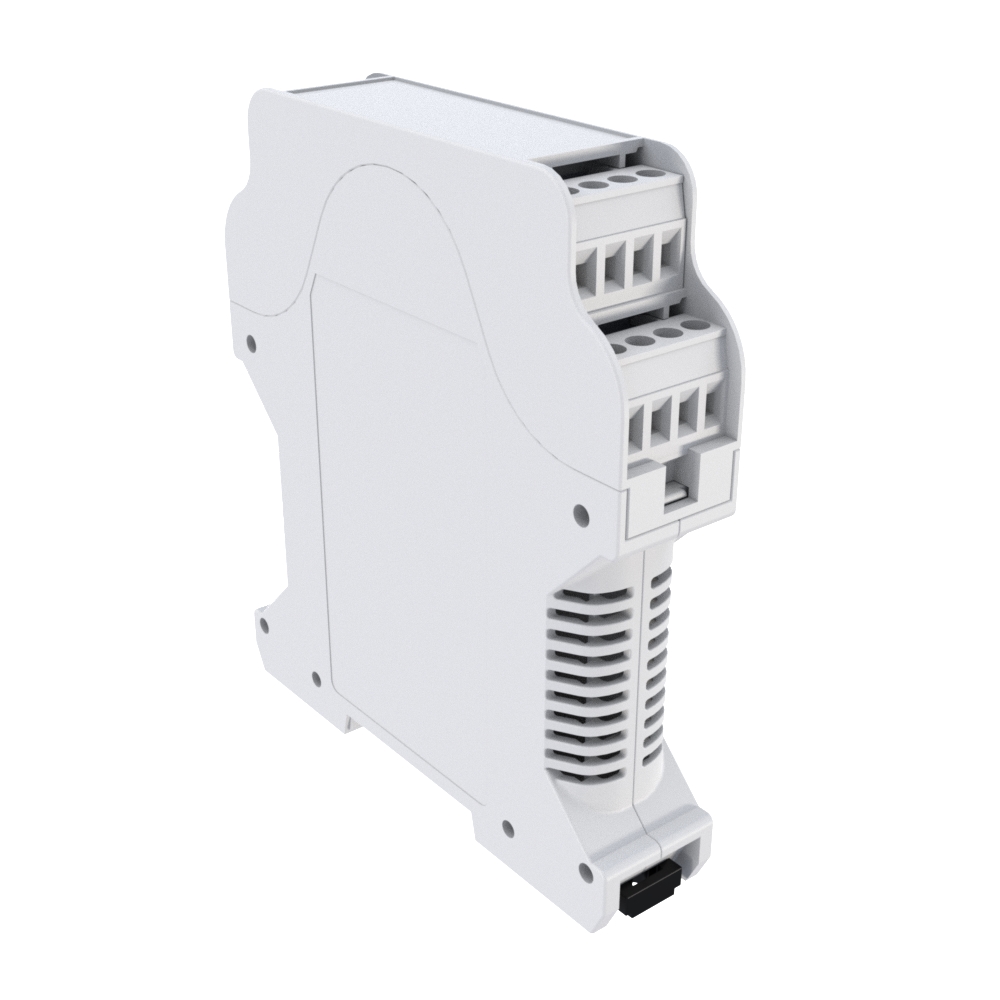

CVB-PLUS1V – 22.5mm DIN Rail Drive and Control and Industrial Electronic Enclosure
CVB-PLUS Series – 22.5mm Vented DIN Rail Enclosure
16 positions
22.5mm wide Vertical DIN Rail Mount Housing
Clip together design for fast assembly
Supplied with four 4-pole 5mm pitch pluggable terminal blocks
Technical
| Dimensions | 112 × 23 × 99 mm |
|---|---|
| Colour | Green |
| Height | 99 |
| Width | 23 |
| Length | 112 |
| IP Rating | IP20 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | DIN Rail |
| Feature | Control Systems |
| Series | CVB |
