HWCHAS1710BK
271.63 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
HWCHAS1710BK
432 × 254 × 76 mm
Material: Aluminium, Wood
Category: All Products, Desktop & Instrument

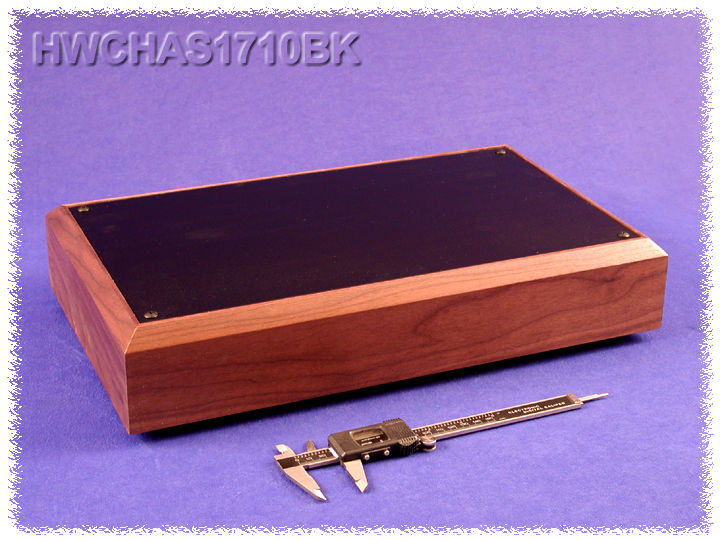

Walnut Chassis, Aluminium Top, Black
£99.87
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Heavy duty construction walnut chassis (see corner detail photo below).
- Top panel available in a choice of natural aluminium or satin black powder paint finish.
- Walnut chassis is 0.778 inches thick (19.8 mm) – corners are produced with wood bracing & dovetail construction methods (see close-up photos below). Designed to handle heavy components.
- Top panel is aluminium for easy modification and thick enough to support heavy transformers without bowing – 0.08? (2 mm) thick. Fully ?framed? support from walnut chassis.
- Includes four large round rubber feet (0.75? dia. x 0.56? high) with mounting hardware into inserts to avoid wood damage. Hardware is of proper length to allow use of optional bottom plate.
- 25-packs of replacement screws are available. ?Part number? SC1441-25 (silver) and?SC1441BK-25 (black)
Photo Features:
Available with a natural aluminium or black powder coated top panel. aluminium panel is supplied with protective covering (perfect as a layout tool!)
Chassis built with dovetail joinery. Hardware inserts pressed into wood for installation of included screws and accessory bottom panels.
Optional bottom panels available in natural aluminium or with black powder coat.
Technical
| Dimensions | 432 × 254 × 76 mm |
|---|---|
| Colour | Wood |
| Height | 76 |
| Width | 254 |
| Length | 432 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Aluminium, Wood |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | HWCHAS |
