SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
MBA 258050
250 × 80 × 57 mm
Material: Aluminium
Category: All Products, Diecast & Metal
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

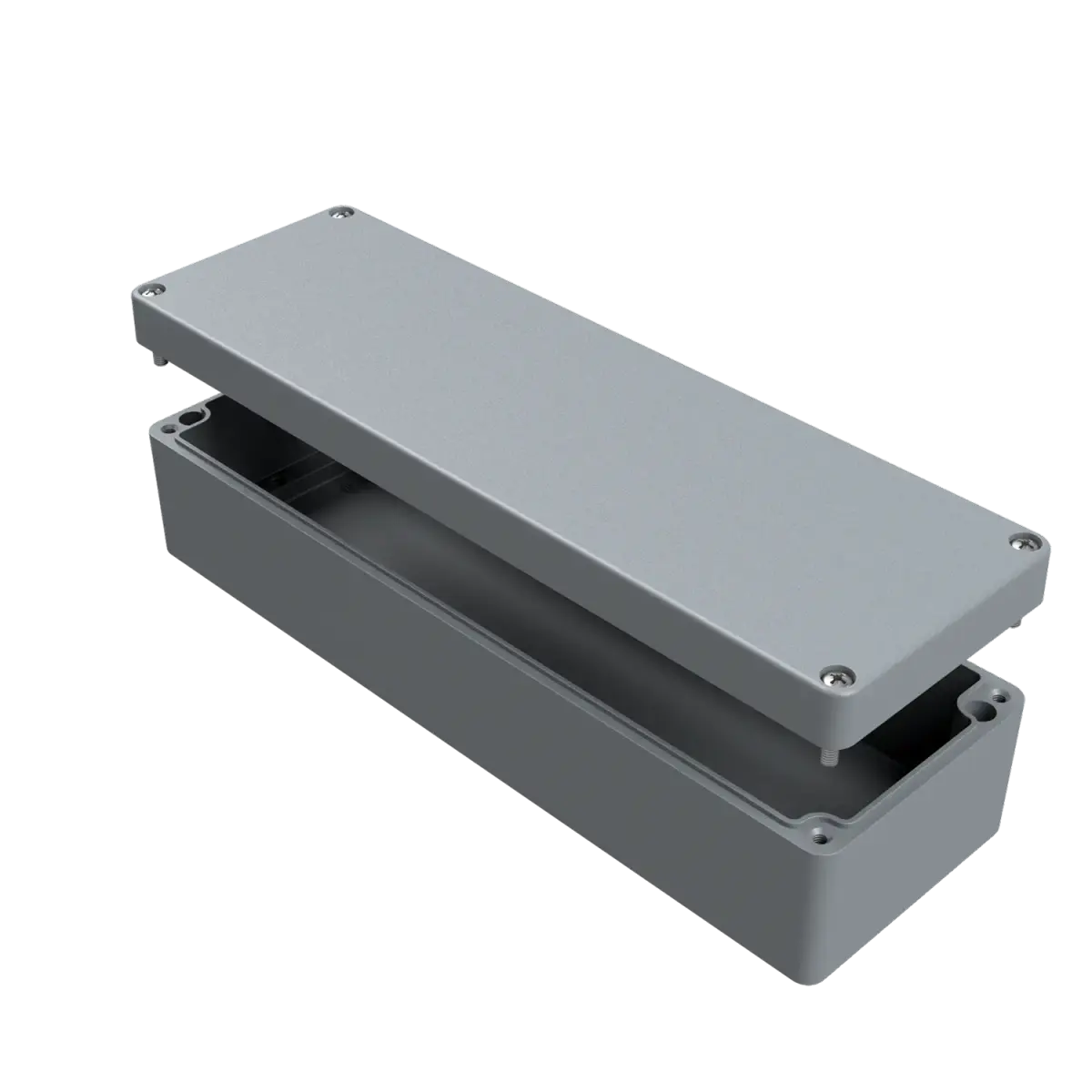

MBA 258050
MBA-Enclosures are universal, sturdy and easily adapt to the installation of electrical, electronic and pneumatic components. Manufacturing takes place using pressure die casting or gravity die casting methods.
MBA-Enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design.
As terminal enclosures they can be assembled according to a modular system with the addition of differing clamps and cable glands. In the measurement and control technology market they are often used for encapsulating sensors. Additionally they serve as junction boxes for cables and lines or take on the job of protecting highly sensitive electronics against water, dirt and dust.
- RAL-code cover: 7001
- RAL-code base: 7001
- Material cover: Aluminium
- Material base: Aluminium
- Material sealing: Polyurethane
- Material screws: Stainless Steel V2 A
- Surface coating: Powder coating
- Permanent operating temperature max. (?C): 100
- Permanent operating temperature min. (?C): -40
- Permanent operating temperature with special sealing max. (?C): 140
- Permanent operating temperature with special sealing min. (?C): -50
- Suitable for outdoor use
- Suitable for indoor use
- Protection class IP66
- Earthing point available
- Sealing foamed seamless
- Captive cover screws
- Special colours
Technical
| Dimensions | 250 × 80 × 57 mm |
|---|---|
| Colour | Silver |
| Height | 57 |
| Width | 80 |
| Length | 250 |
| IP Rating | IP66 |
| Manufacturer | Multi-Box |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | MBA |
