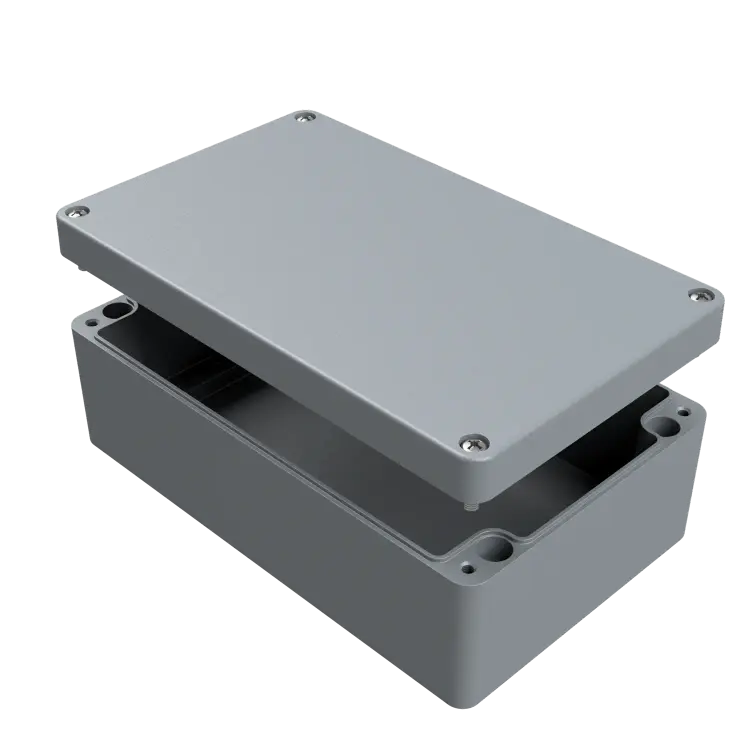

MBA 261690

260 × 160 × 90 mm

Material: Aluminium

Category: All Products, Diecast & Metal

Aluminium-Enclosures MBA
Price on Application

Low volume indicative cost. Enquire for volume pricing.

Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

MBA 261690

MBA-Enclosures are universal, sturdy and easily adapt to the installation of electrical, electronic and pneumatic components. Manufacturing takes place using pressure die casting or gravity die casting methods.

MBA-Enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design.

As terminal enclosures they can be assembled according to a modular system with the addition of differing clamps and cable glands. In the measurement and control technology market they are often used for encapsulating sensors. Additionally they serve as junction boxes for cables and lines or take on the job of protecting highly sensitive electronics against water, dirt and dust.

  • RAL-code cover: 7001
  • RAL-code base: 7001
  • Material cover: Aluminium
  • Material base: Aluminium
  • Material sealing: Polyurethane
  • Material screws: Stainless Steel V2 A
  • Surface coating: Powder coating
  • Permanent operating temperature max. (?C): 100
  • Permanent operating temperature min. (?C): -40
  • Permanent operating temperature with special sealing max. (?C): 140
  • Permanent operating temperature with special sealing min. (?C): -50
  • Suitable for outdoor use
  • Suitable for indoor use
  • Protection class IP66
  • Earthing point available
  • Sealing foamed seamless
  • Captive cover screws
  • Special colours

Technical

Dimensions 260 × 160 × 90 mm
Colour

Silver

Height

90

Width

160

Length

260

IP Rating

IP66

Manufacturer

Multi-Box

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

MBA
