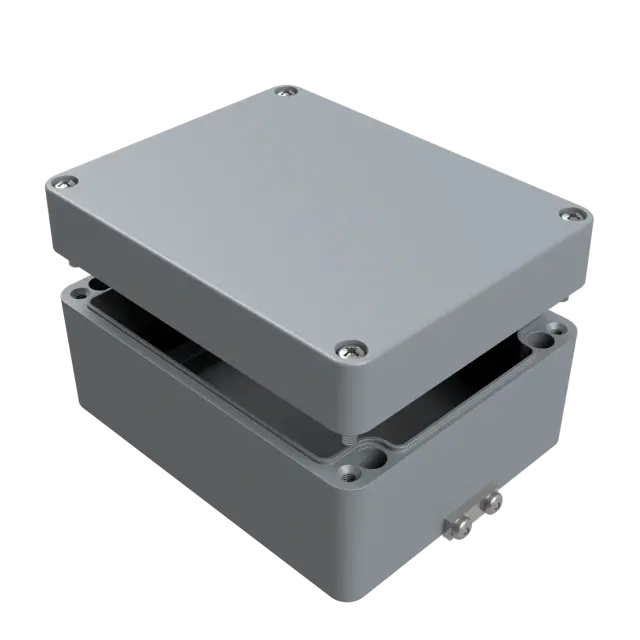

MBA-Ex empty 181490

180 × 140 × 90 mm

Material: Aluminium

Category: All Products, ATEX

Aluminium Ex-empty Enclosures
Price on Application

Low volume indicative cost. Enquire for volume pricing.

Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

MBA-Ex empty 181490

MULTI-BOX?Aluminium-Ex empty enclosures?are conform to all instillation field requirements where explosive concentrations of gases and dusts can appear. Zones 1 and 2 as well as 21 and 22.

MBA-Ex empty U certified enclosures have a component certificate confirming the construction security for the additional components to be added. Therefore the registration and re-testing of the new product, after the fitting of additional components is considerably simplified, due to the already approved enclosure construction.

The MBA-Ex empty enclosures have a U certification and therefore, after the installation of approved electrical and electrotechnical components into the enclosure, the complete unit should be retested with temperature characteristics included.

  • Categorisation: u
  • Zone classification: 1, 2, 21, 22
  • Operating temperature max. (?C): 100
  • Operating temperature min. (?C): -55
  • External earthing point
  • RAL-code cover: 7001
  • RAL-code base: 7001
  • Material cover: Aluminium
  • Material base: Aluminium
  • Material sealing: Silicone
  • Material screws: Stainless Steel V2 A
  • Surface coating: Powder coating
  • Suitable for outdoor use
  • Suitable for indoor use
  • Protection class IP66
  • Earthing point available
  • Captive cover screws

Technical

Dimensions 180 × 140 × 90 mm
Colour

Silver

Height

90

Width

140

Length

180

IP Rating

IP66

Manufacturer

Multi-Box

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

Ex-Empty
