MBM 090603
98 × 64 × 37 mm
Material: Polycarbonate
Category: All Products, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

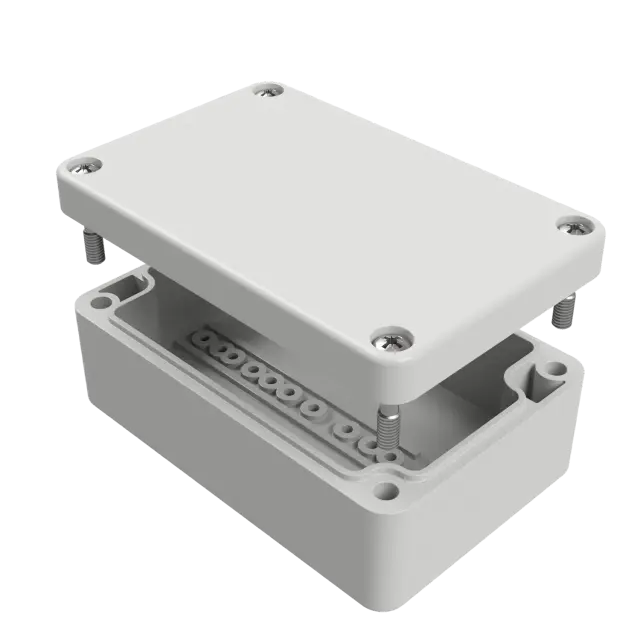

MBM 090603
MBM Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems.
Thanks to the high UV-resistance of the material, these enclosures can be used in both indoor and outdoor areas.
The MBM Enclosures are mechanically processed in a number of ways providing almost no limits with customised surface design, including silk screen printing and membrane keyboards.
The enclosures are available with a grey or transparent cover (K).
- RAL-code cover: 7035
- RAL-code base: 7035
- Material cover: Polycarbonate
- Material base: Polycarbonate
- Material sealing: Polyurethane
- Material screws: Stainless Steel V2 A
- UV-resistant
- Permanent operating temperature max. (?C): 100
- Permanent operating temperature min. (?C): -40
- Suitable for outdoor use
- Suitable for indoor use
- Protection class IP : 65
- Sealing foamed seamless
- Captive cover screws
- Special colours
Technical
| Dimensions | 98 × 64 × 37 mm |
|---|---|
| Colour | Grey |
| Height | 37 |
| Width | 64 |
| Length | 98 |
| IP Rating | IP65 |
| Manufacturer | Multi-Box |
| Material | Polycarbonate |
| Flammability | UL94 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | MBM |
