MBM 128040

120 × 80 × 41 mm

Material: Polycarbonate

Category: All Products, Heavy Duty

Polycarbonate-Enclosures MBM / Grey Cover
Price on Application

Low volume indicative cost. Enquire for volume pricing.

Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

MBM 128040

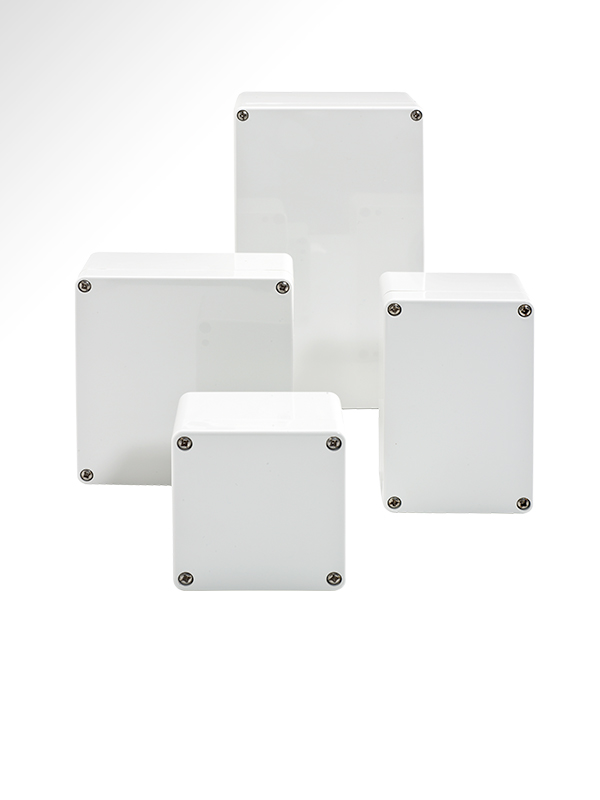

MBM Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems.

Thanks to the high UV-resistance of the material, these enclosures can be used in both indoor and outdoor areas.

The MBM Enclosures are mechanically processed in a number of ways providing almost no limits with customised surface design, including silk screen printing and membrane keyboards.

The enclosures are available with a grey or transparent cover (K).

  • RAL-code cover: 7035
  • RAL-code base: 7035
  • Material cover: Polycarbonate
  • Material base: Polycarbonate
  • Material sealing: Polyurethane
  • Material screws: Stainless Steel V2 A
  • UV-resistant
  • Permanent operating temperature max. (?C): 100
  • Permanent operating temperature min. (?C): -40
  • Suitable for outdoor use
  • Suitable for indoor use
  • Protection class IP : 65
  • Sealing foamed seamless
  • Captive cover screws
  • Special colours

Technical

Dimensions 120 × 80 × 41 mm
Colour

Grey

Height

41

Width

80

Length

120

IP Rating

IP65

Manufacturer

Multi-Box

Material

Polycarbonate

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

MBM
