MBM 241270K
240 × 120 × 70 mm
Material: Polycarbonate
Category: All Products, Heavy Duty

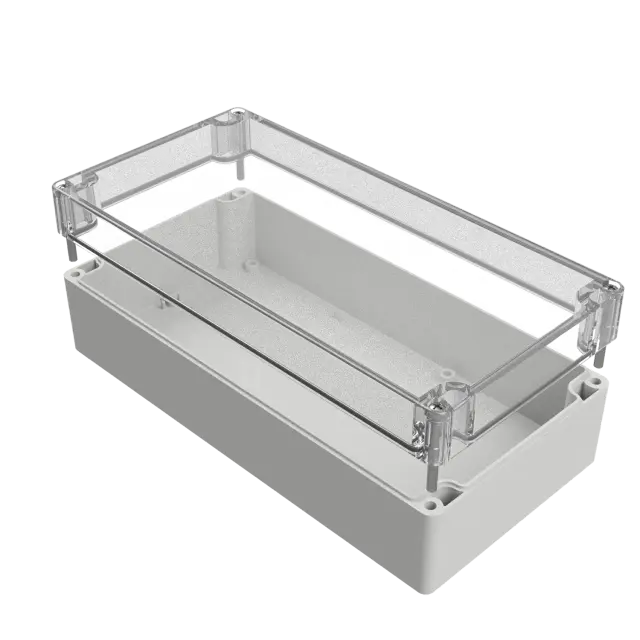

Polycarbonate-Enclosures MBM / Clear Cover
Price on Application
Add to QuoteAsk a QuestionReport an ErrorEnclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
MBM 241270K
MBM Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems.
Thanks to the high UV-resistance of the material, these enclosures can be used in both indoor and outdoor areas.
The MBM Enclosures are mechanically processed in a number of ways providing almost no limits with customised surface design, including silk screen printing and membrane keyboards.
The enclosures are available with a grey or transparent cover (K).
Article No. 0302106900
Material: Polycarbonate
Protection class: IP65
Dimensions and weight
-
Length (mm)240
-
Width (mm)120
-
Height (mm)70
-
Weight (g)483
Colour information
-
Colour description coverTransparent
-
Colour description baseLight grey
-
RAL-code base7035
Material information
-
Material coverPolycarbonate
-
Material basePolycarbonate
-
Material sealingPolyurethane
-
Material screwsStainless Steel V2 A
-
Silicone-free
-
Halogen-free
-
Material UL listedUV-resistant
Temperature resistance and application areas
-
Permanent operating temperature max. (°C)100
-
Permanent operating temperature min. (°C)-40
-
Suitable for outdoor use
-
Suitable for indoor use
Technical specifications
-
Protection class IP65
-
Norm of protection classDIN EN 60529
-
Flame retardancyV2
-
UL-SubjectUL 94
-
Fully insulated
-
Sealing foamed seamless
-
Captive cover screws
-
Assembly toolPZ2
-
Tightening torque cover screws max. (Nm)2.00
-
Tightening torque cover screws min. (Nm)1.00
Modifications and Services
-
Mechanical processing
-
Finishing and Assembly
-
Surface design
-
Special colours
-
EMC version
Technical
| Weight | 483 kg |
|---|---|
| Dimensions | 240 × 120 × 70 mm |
| Colour | Clear, Grey |
| Height | 70 |
| Width | 120 |
| Length | 240 |
| IP Rating | IP65 |
| Manufacturer | Multi-Box |
| Material | Polycarbonate |
| Flammability | UL94 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | MBM |
