MBP-Ex empty 117550

110 × 75 × 50 mm

Material: Polyester

Category: All Products, ATEX

Polyester-Ex empty Enclosures
Price on Application

Low volume indicative cost. Enquire for volume pricing.

Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

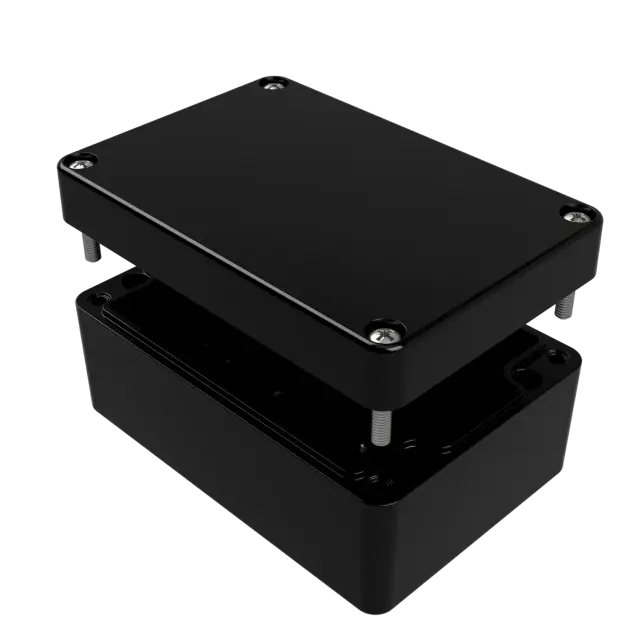

MBP-Ex empty 117550

MULTI-BOX MBP Polyester-Ex empty enclosures are conform to all instillation field requirements where explosive concentrations of gases and dusts can appear. Zones 1 and 2 as well as 21 and 22.

MBP-Ex empty U certified enclosures have a component certificate confirming the construction security for the additional components to be added. Therefore the registration and re-testing of the new product, after the fitting of additional components is considerably simplified, due to the already approved enclosure construction.

The MBP Ex empty enclosures have a U certification and therefore, after the installation of approved electrical and electrotechnical components into the enclosure, the complete unit should be retested with temperature characteristics included.

  • Categorisation: u
  • Zone classification: 1, 2, 21, 22
  • Operating temperature max. (?C): 100
  • Operating temperature min. (?C): -55
  • RAL-code cover: 9005
  • RAL-code base: 9005
  • Material cover: Polyester GRP
  • Material base: Polyester GRP
  • Material sealing: Silicone
  • Material screws: Stainless Steel V2 A
  • UV-resistant
  • Suitable for outdoor use
  • Suitable for indoor use
  • Protection class IP : 66
  • Flame retardancy : V0
  • Captive cover screws

Technical

Dimensions 110 × 75 × 50 mm
Colour

Black

Height

50

Width

75

Length

110

IP Rating

IP66

Manufacturer

Multi-Box

Material

Polyester

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

Ex-Empty
