MBP-Ex empty 161690
160 × 160 × 90 mm
Material: Polyester
Category: All Products, ATEX
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

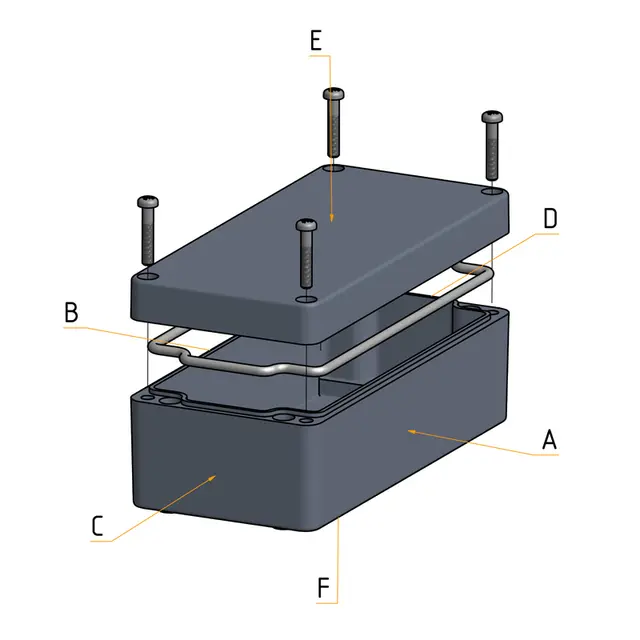

MBP-Ex empty 161690
MULTI-BOX MBP Polyester-Ex empty enclosures are conform to all instillation field requirements where explosive concentrations of gases and dusts can appear. Zones 1 and 2 as well as 21 and 22.
MBP-Ex empty U certified enclosures have a component certificate confirming the construction security for the additional components to be added. Therefore the registration and re-testing of the new product, after the fitting of additional components is considerably simplified, due to the already approved enclosure construction.
The MBP Ex empty enclosures have a U certification and therefore, after the installation of approved electrical and electrotechnical components into the enclosure, the complete unit should be retested with temperature characteristics included.
- Categorisation: u
- Zone classification: 1, 2, 21, 22
- Operating temperature max. (?C): 100
- Operating temperature min. (?C): -55
- RAL-code cover: 9005
- RAL-code base: 9005
- Material cover: Polyester GRP
- Material base: Polyester GRP
- Material sealing: Silicone
- Material screws: Stainless Steel V2 A
- UV-resistant
- Suitable for outdoor use
- Suitable for indoor use
- Protection class IP : 66
- Flame retardancy : V0
- Captive cover screws
Technical
| Dimensions | 160 × 160 × 90 mm |
|---|---|
| Colour | Black |
| Height | 90 |
| Width | 160 |
| Length | 160 |
| IP Rating | IP66 |
| Manufacturer | Multi-Box |
| Material | Polyester |
| Flammability | UL94 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | Ex-Empty |
